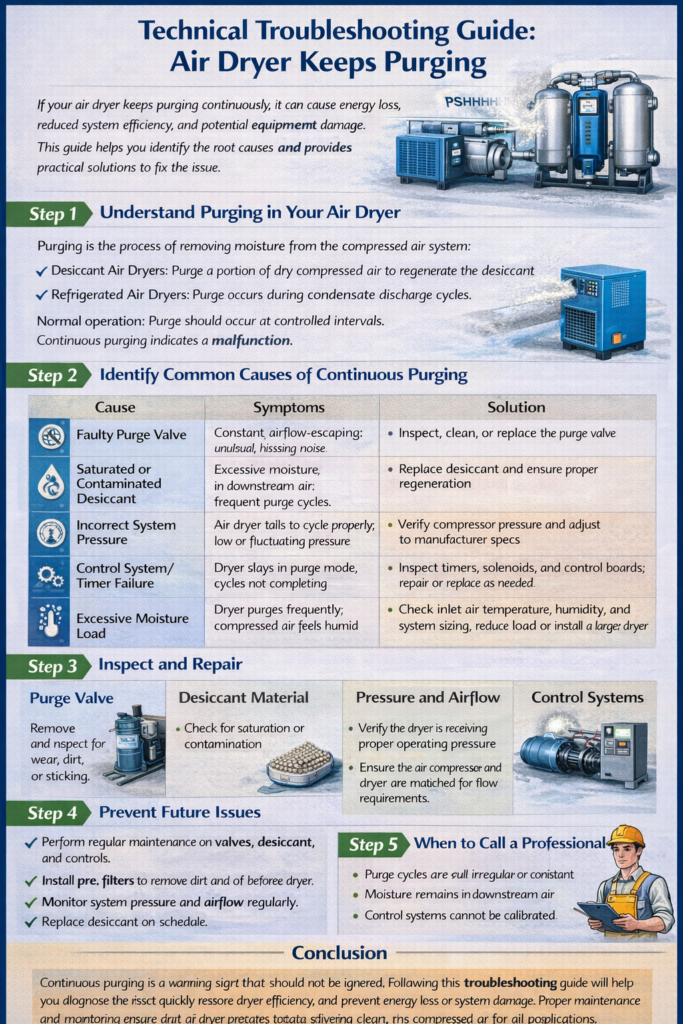

If your air dryer keeps purging continuously, it can cause energy loss, reduced system efficiency, and potential equipment damage. This guide helps you identify the root causes and provides practical solutions to fix the issue.
Step 1: Understand Purging in Your Air Dryer
Purging is the process of removing moisture from the compressed air system:
Desiccant Air Dryers: Purge a portion of dry compressed air to regenerate the desiccant.
Refrigerated Air Dryers: Purge occurs during condensate discharge cycles.
Normal operation: Purge should occur at controlled intervals. Continuous purging indicates a malfunction.
Step 2: Identify Common Causes of Continuous Purging
| Cause | Symptoms | Solution |
|---|---|---|
| Faulty Purge Valve | Constant airflow escaping; unusual hissing noise | Inspect, clean, or replace the purge valve |
| Saturated or Contaminated Desiccant | Excessive moisture in downstream air; frequent purge cycles | Replace desiccant and ensure proper regeneration |
| Incorrect System Pressure | Air dryer fails to cycle properly; low or fluctuating pressure | Verify compressor pressure and adjust to manufacturer specs |
| Control System/Timer Failure | Dryer stays in purge mode; cycles not completing | Inspect timers, solenoids, and control boards; repair or replace as needed |
| Excessive Moisture Load | Dryer purges frequently; compressed air feels humid | Check inlet air temperature, humidity, and system sizing; reduce load or install a larger dryer |
Step 3: Inspect and Repair
Purge Valve
Remove and inspect for wear, dirt, or sticking.
Clean or replace if necessary.
Desiccant Material
Check for saturation or contamination.
Replace desiccant according to manufacturer guidelines.
Pressure and Airflow
Verify the dryer is receiving proper operating pressure.
Ensure the air compressor and dryer are matched for flow requirements.
Control Systems
Test timers, solenoids, and sensors for proper operation.
Replace defective components.
System Load
Ensure the dryer is correctly sized for inlet air temperature and humidity.
Reduce excess moisture load by pre-filtering or adjusting compressor settings.
Step 4: Prevent Future Issues
Perform regular maintenance on valves, desiccant, and controls.
Install pre-filters to remove dirt and oil before the dryer.
Monitor system pressure and airflow regularly.
Replace desiccant on schedule.
Ensure the air dryer is appropriately sized for your compressed air system.
Step 5: When to Call a Professional
If continuous purging persists after performing these checks:
Purge cycles are still irregular or constant
Moisture remains in downstream air
Control systems cannot be calibrated
Contact a certified technician or the dryer manufacturer for inspection and repair.
Conclusion
Continuous purging is a warning sign that should not be ignored. Following this troubleshooting guide will help you diagnose the issue quickly, restore dryer efficiency, and prevent energy loss or system damage. Proper maintenance and monitoring ensure your air dryer operates reliably, delivering clean, dry compressed air for all applications.
