Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

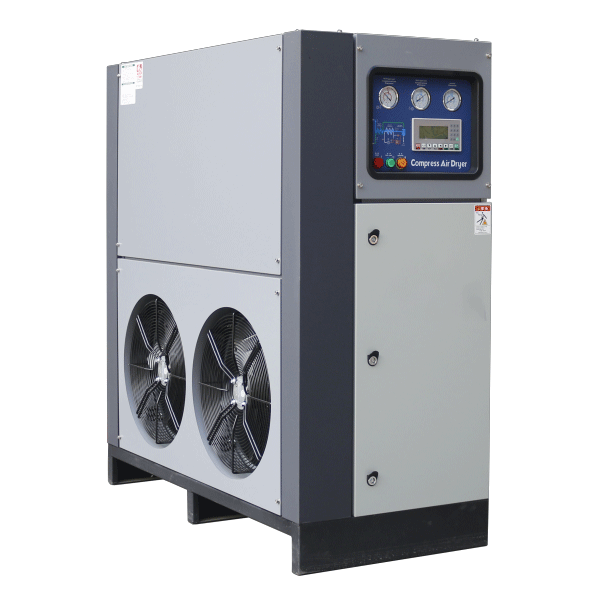

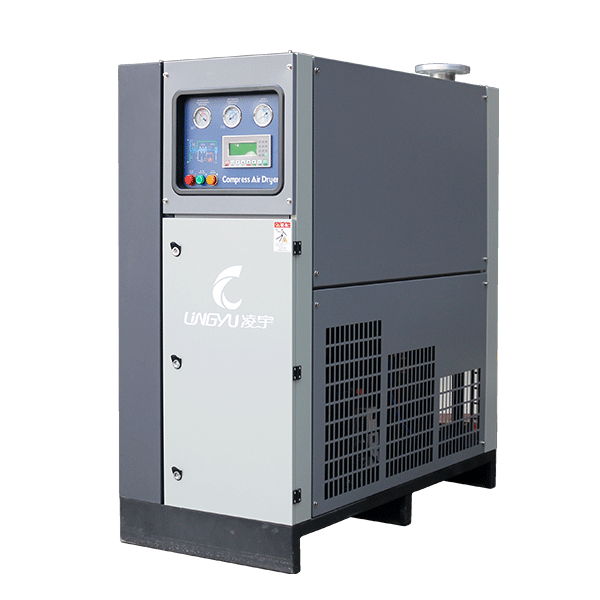

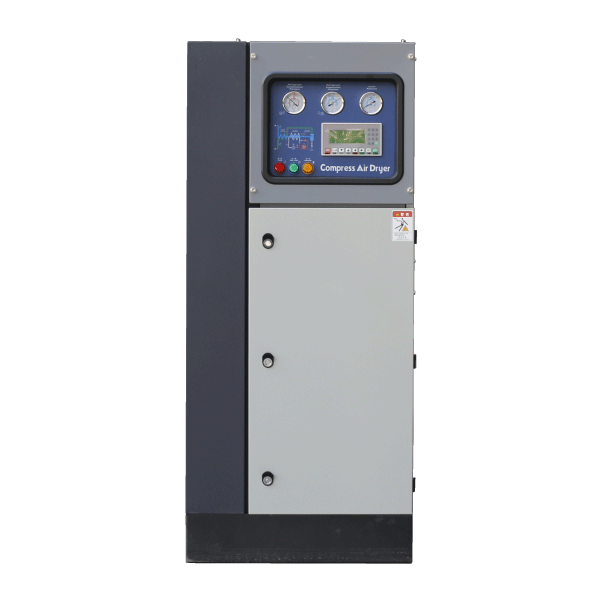

The Refrigerated Air Dryer is designed to provide stable and efficient moisture removal for industrial compressed air systems. It works by cooling hot, moisture-laden compressed air to condense water vapor into liquid, which is then separated and discharged from the system. This process helps deliver clean and dry compressed air to downstream equipment and production lines.
The dryer maintains an outlet pressure dew point of 2°C to 10°C, which is suitable for a wide range of industrial applications. With optional air-cooled or water-cooled configurations, the system can be adapted to different installation conditions and operating environments. Its efficient refrigeration design helps reduce moisture-related damage, improve air quality, and support stable long-term operation.
To ensure stable performance and reliable operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean, well-ventilated environment and matched to the actual system pressure, airflow, and temperature conditions.
| Processing Capacity (m³/min) | Power Supply (V/Hz) | Total Power (kW) | Air Inlet/Outlet | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.50 | 220/50 | 0.70 | RC1″ | 500 × 380 × 740 |
| 2.50 | 220/50 | 0.79 | RC1″ | 500 × 380 × 740 |
| 3.80 | 220/50 | 0.90 | RC1″ | 520 × 450 × 990 |
| 6.50 | 220/50 | 1.20 | RC1″-z | 520 × 450 × 990 |
| 10.5 | 220/50 | 2.00 | RC2″ | 670 × 560 × 1330 |
| 13.5 | 220/50 | 2.30 | RC2″ | 670 × 560 × 1330 |
| 17.0 | 220/50 | 2.80 | RC1″-1z” | 1200 × 700 × 1480 |
| 21.5 | 380/50 | 3.90 | DN80 | 1460 × 700 × 1480 |
| 25.0 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1480 |
| 28.5 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1600 |
| 32.0 | 380/50 | 5.70 | DN80 | 1480 × 740 × 1600 |
| 37.0 | 380/50 | 7.80 | DN100 | 1640 × 840 × 1750 |
| 45.0 | 380/50 | 8.80 | DN100 | 1640 × 840 × 1750 |
| 55.0 | 380/50 | 10.1 | DN125 | 1740 × 840 × 1750 |
| 65.0 | 380/50 | 10.1 | DN125 | 1890 × 840 × 1803 |
| 75.0 | 380/50 | 11.1 | DN125 | 1980 × 950 × 1990 |
| 85.0 | 380/50 | 13.7 | DN125 | 2220 × 950 × 2063 |
Note: For processing capacities above 85 m³/min, or for special requirements related to specifications, materials, or operating temperature, please contact our company or authorized distributors. All specifications are subject to change without prior notice.
The Refrigerated Air Dryer is widely used in industrial and scientific applications that require clean, stable, and moisture-controlled compressed air.
Helps provide dry compressed air for ozone generation systems, improving system stability and overall performance.
Suitable for analytical equipment and laboratory air systems where moisture control is important for reliable test results.
Used in waveguide and communication-related applications where dry air helps prevent condensation and corrosion.
Supports stable air quality in testing environments where humidity control is essential for accurate simulation conditions.
Provides dry compressed air for fire protection systems, helping prevent internal corrosion and moisture accumulation.
Supplies dry compressed air for sensitive production processes where moisture may affect components, assembly quality, or equipment reliability.
Used in packaging, conveying, and process air systems where dry compressed air supports hygiene standards and consistent production quality.
Suitable for compressed air applications in pharmaceutical manufacturing where clean and dry air is required for stable process control.
Provides dry compressed air for pneumatic components, automated equipment, and control systems, helping reduce wear and maintain efficient operation.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
The 200 CFM refrigerated air dryer (air cooled) is a compact and efficient solution for removing moisture from compressed air systems. Designed for mid-sized industrial applications, this dryer ensures clean, dry air to protect downstream equipment from corrosion, contamination, and failure.
With air-cooled technology and stable dew point performance, the 200 CFM refrigerated air dryer (air cooled) offers a reliable and energy-saving approach to compressed air drying.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
The 8830 CFM refrigerated air dryer (water cooled) is a top-tier industrial solution engineered to remove moisture from large-scale compressed air systems. Built for ultra-high capacity applications, this dryer ensures consistently dry air with a stable dew point and superior thermal control using an advanced water-cooled condenser system.
Designed for 24/7 operation in the most demanding environments, the 8830 CFM refrigerated air dryer (water cooled) guarantees optimal air quality, minimal pressure loss, and extended equipment lifespan across heavy-duty industries.
