Supports customization, with a processing capacity of up to 15,900 CFM (cubic feet per minute).

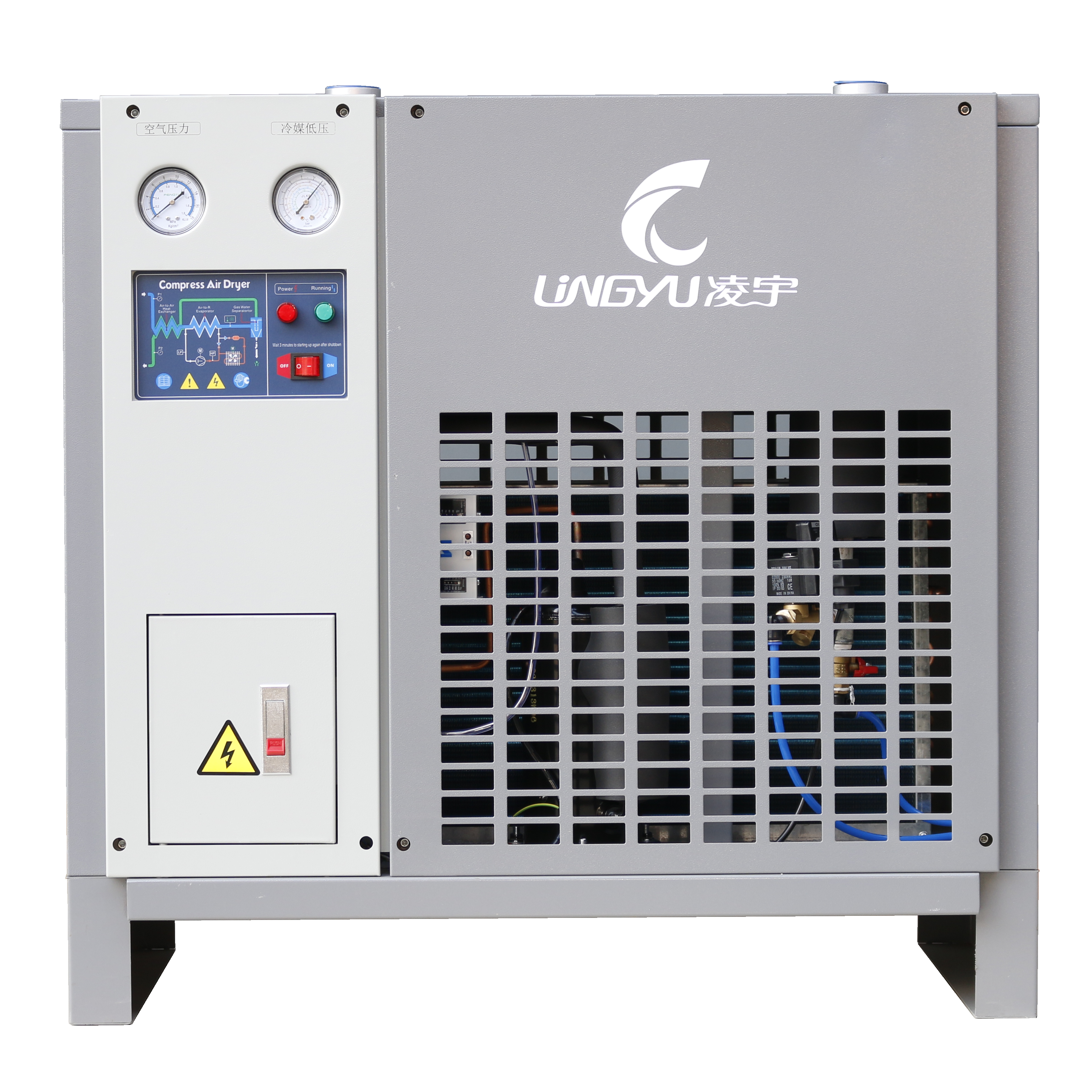

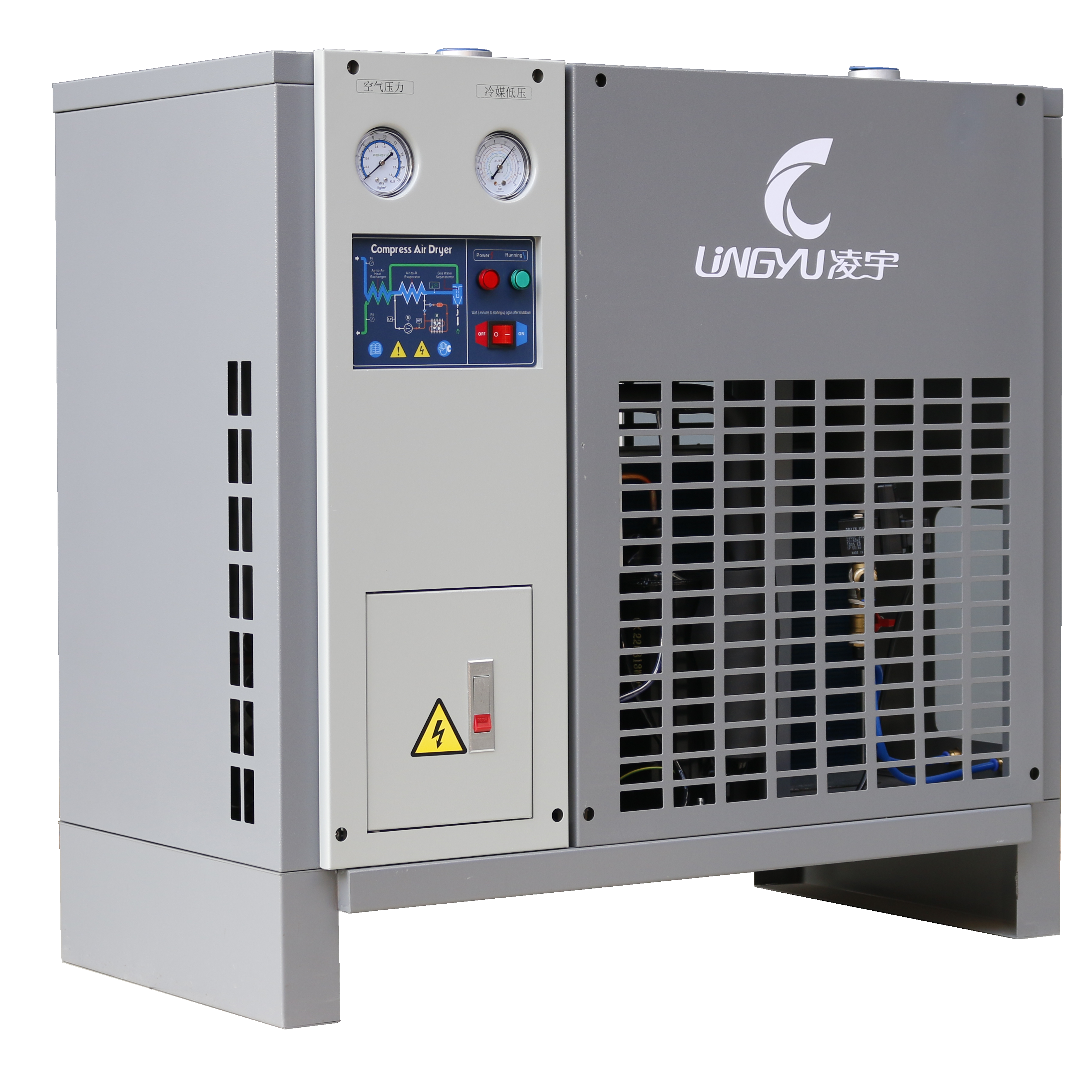

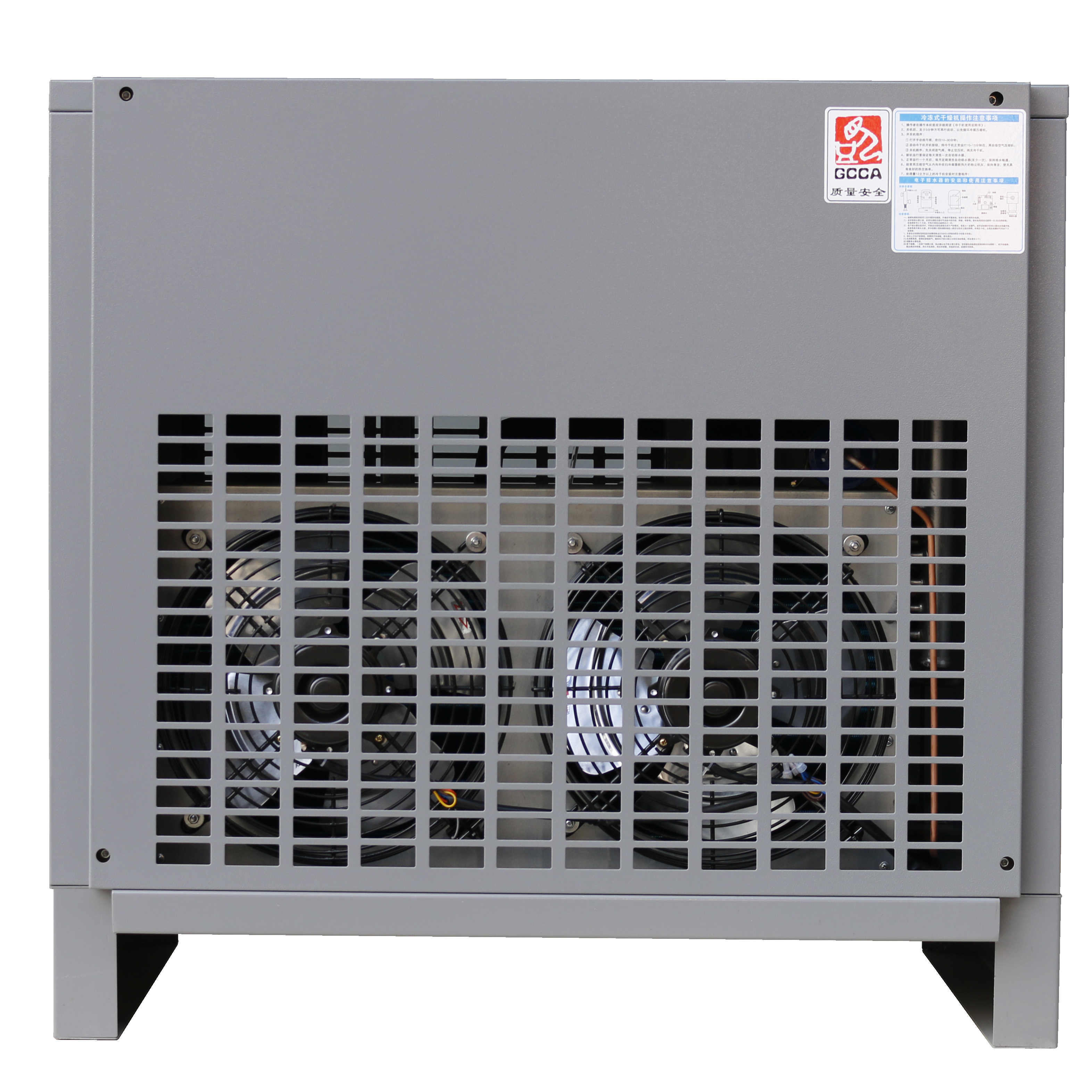

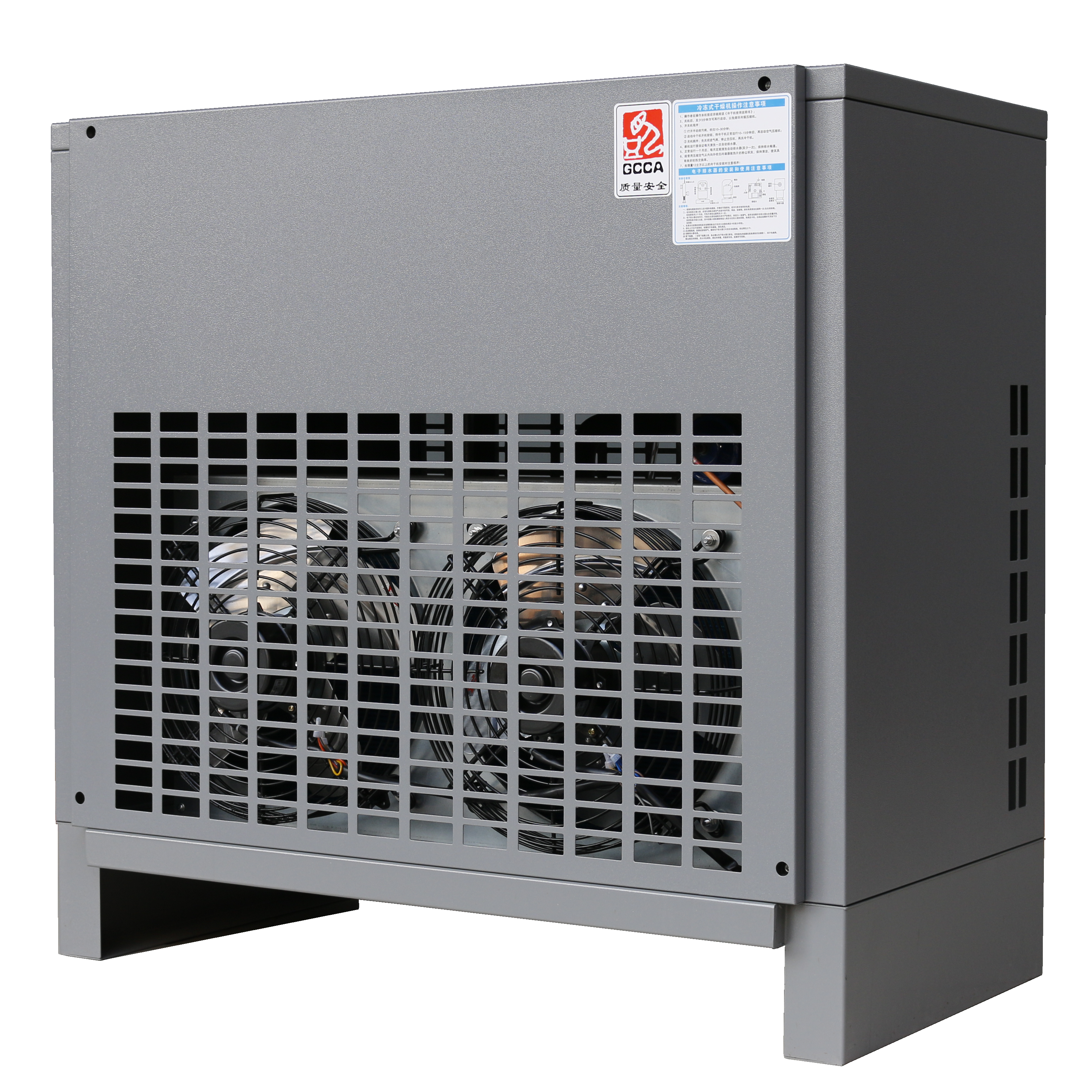

This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
The 75 CFM air-cooled refrigerated air dryer is engineered for small to medium compressed air systems, providing reliable moisture removal and consistent dew point control. With a compact design, energy-efficient operation, and easy installation, it is ideal for workshops, light manufacturing, automotive shops, and other commercial applications.
Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
Inlet Air Pressure: 4–10 bar (58–145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5–45°C (41–113°F)
Installation Environment: Indoor, dry, well-ventilated
Power Supply: 220V / 1Ph / 50Hz (customizable)
Refrigerant Type: R134a or R410A
Filtration Requirement: Pre-filter and after-filter recommended
| Parameter | Specification |
|---|---|
| Model | 75 CFM Refrigerated Air Dryer (Air-Cooled) |
| Air Flow Capacity | 75 CFM |
| Cooling Method | Air-Cooled |
| Refrigerant | R134a / R410A |
| Max Working Pressure | 10 bar |
| Pressure Dew Point | 2–10°C |
| Power Supply | 220V / 1Ph / 50Hz |
| Connection Size | 1” NPT |
| Dimensions (L×W×H) | 700 × 450 × 750 mm |
| Weight | 55 kg |
This compact air-cooled dryer provides long-term reliable operation with robust materials and quality refrigeration components.
In Malaysia’s hot, humid, and high-rainfall environment, refrigerated air dryers are widely used to reduce moisture in compressed air systems and help prevent condensation, rust, water carryover, and unstable pneumatic performance. For small to medium air systems, a 75 CFM air-cooled refrigerated air dryer is especially suitable for indoor commercial and light industrial applications that require reliable everyday dry air rather than ultra-low dew point performance.
Typical applications in Malaysia include:
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 1130 SCFM refrigerated air dryer (air cooled) is a high-capacity, energy-efficient solution designed to eliminate moisture from compressed air systems in demanding industrial environments. With a robust air-cooled refrigeration system and a processing capacity of 1130 SCFM, this dryer delivers consistent performance and reliable dew point control to protect downstream equipment and ensure production continuity.
Whether you’re operating in a manufacturing plant, automotive facility, or heavy-duty processing site, the 1130 SCFM refrigerated air dryer (air cooled) guarantees optimal air quality while reducing maintenance costs and energy waste.
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
