It uses high-performance pneumatic valves, good adsorbent materials, and electronic controllers, which are simple to operate, have low operating noise, and have long service life.

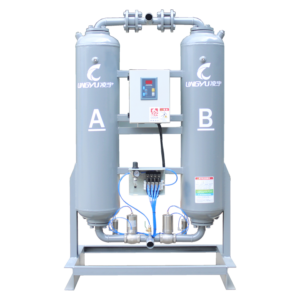

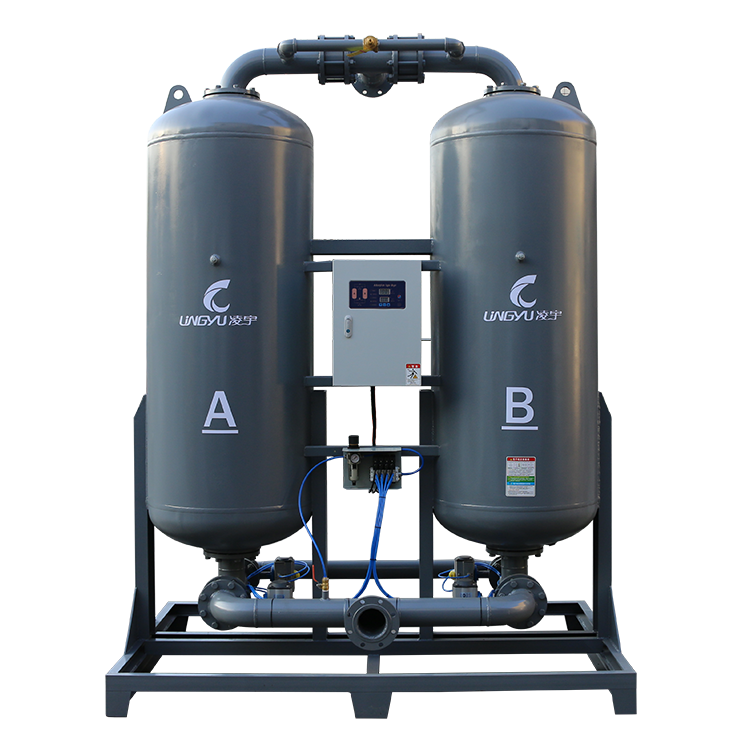

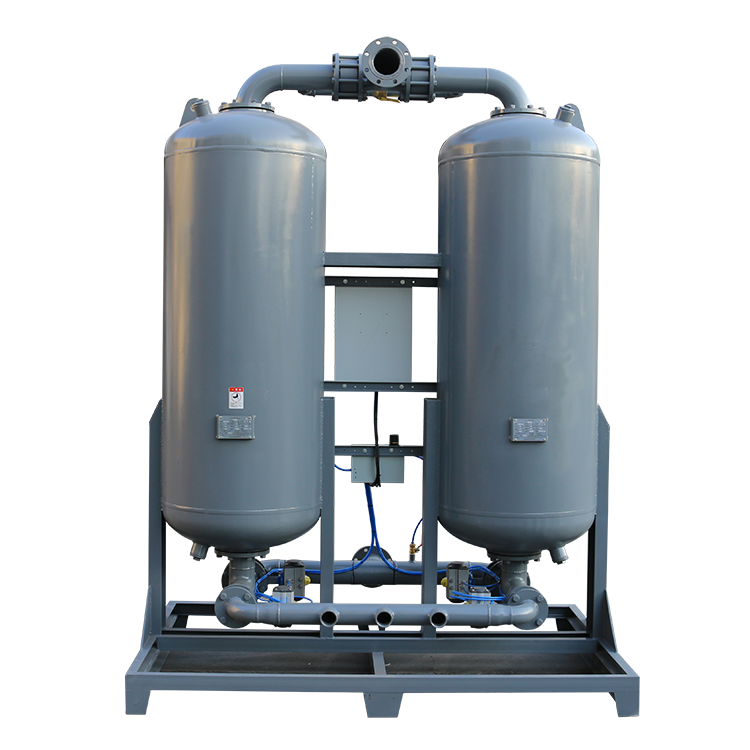

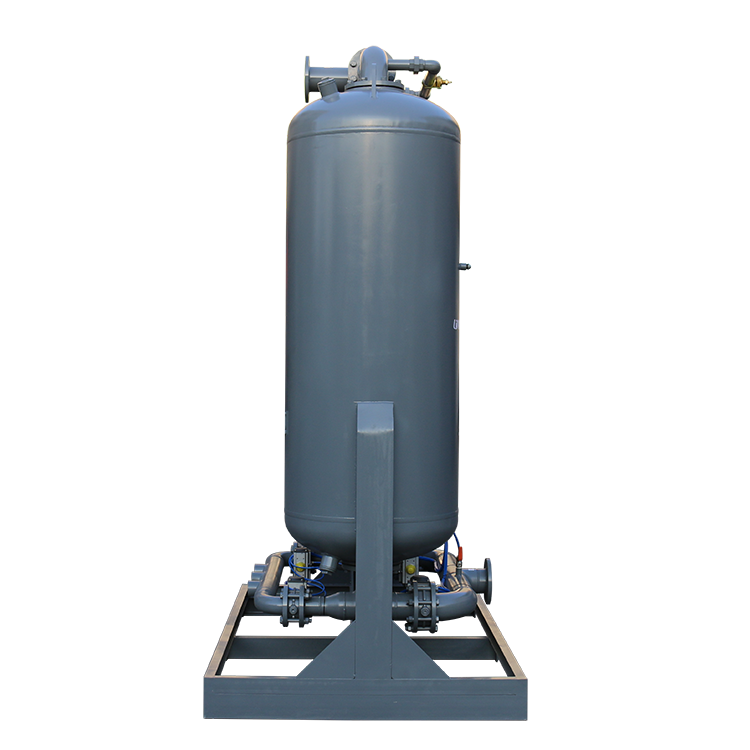

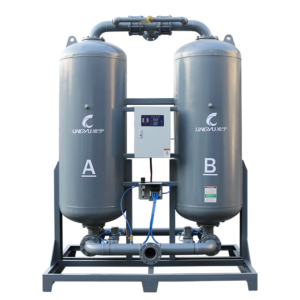

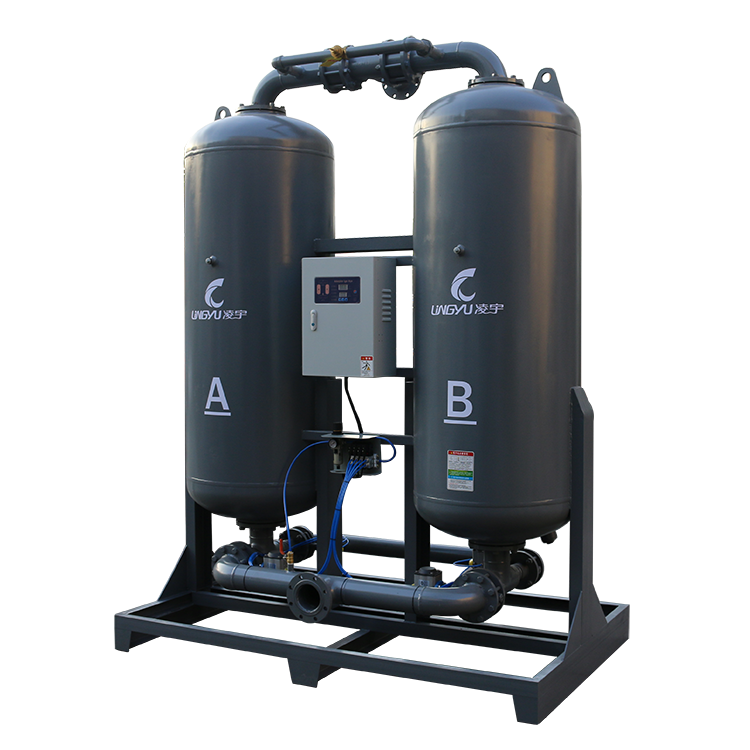

The Heatless Regeneration Adsorption Air Dryer is designed for industrial compressed air systems that require reliable, continuous, and energy-efficient drying. It operates on the principle of Pressure Swing Adsorption (PSA), removing moisture from compressed air without the need for external heating.
During operation, water vapor in the compressed air is adsorbed by the desiccant when the partial pressure is high. At the same time, a small portion of the dried compressed air is diverted as regeneration gas. Under this low partial pressure condition, the adsorbed moisture is released from the desiccant and discharged, allowing the adsorbent to regenerate automatically.
This process enables adsorption and regeneration to take place in alternating cycles, ensuring a continuous supply of dry compressed air. Because no external heater or cooler is required, the system features a simple structure, stable performance, and easy operation while maintaining a low outlet dew point.
To ensure stable drying performance and reliable long-term operation, the Heatless Regeneration Adsorption Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be supplied with clean and stable compressed air. Proper pre-filtration is recommended to protect the desiccant, maintain drying efficiency, and extend equipment service life.
| Model | Capacity (m³/min) | Voltage (V/Hz) | Power (kW) | Inlet/Outlet | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LY-HH10NX | 1.5 | 220/50 | 0.1 | G1″ | 175 | 725×630×1795 |
| LY-HH20NX | 2.5 | 220/50 | 0.1 | G1″ | 310 | 840×570×1695 |
| LY-HH30NX | 3.8 | 220/50 | 0.1 | G1½” | 430 | 1020×610×1690 |
| LY-HH50NX | 6.5 | 220/50 | 0.1 | G1½” | 522 | 1160×680×1860 |
| LY-HH75NX | 10.5 | 220/50 | 0.1 | G2″ | 580 | 1200×720×2180 |
| LY-HH100NX | 13.5 | 220/50 | 0.1 | G2″ | 720 | 1260×780×2230 |
| LY-HH120NX | 17.0 | 220/50 | 0.1 | DN65 | 820 | 1350×930×2440 |
| LY-HH150NX | 21.5 | 220/50 | 0.1 | DN80 | 1000 | 1470×1000×2270 |
| LY-HH180NX | 25.0 | 220/50 | 0.1 | DN80 | 1100 | 1460×1000×2470 |
| LY-HH200NX | 28.5 | 220/50 | 0.1 | DN80 | 1180 | 1560×1070×2450 |
| LY-HH250NX | 32.0 | 220/50 | 0.1 | DN80 | 1350 | 1600×1050×2650 |
| LY-HH300NX | 37.0 | 220/50 | 0.1 | DN100 | 1420 | 1700×1100×2680 |
| LY-HH350NX | 41.5 | 220/50 | 0.1 | DN100 | 1550 | 1830×1150×2700 |
| LY-HH400NX | 45.0 | 220/50 | 0.1 | DN100 | 1670 | 1830×1150×2790 |
| LY-HH450NX | 50.0 | 220/50 | 0.1 | DN100 | 1790 | 2040×1240×2780 |
| LY-HH500NX | 55.0 | 220/50 | 0.1 | DN100 | 2000 | 2040×1240×2875 |
| LY-HH550NX | 60.0 | 220/50 | 0.1 | DN100 | 2120 | 2130×1300×2790 |
| LY-HH600NX | 65.0 | 220/50 | 0.1 | DN125 | 2320 | 2210×1340×2970 |
| LY-HH700NX | 75.0 | 220/50 | 0.1 | DN125 | 2500 | 2350×1380×2920 |
| LY-HH800NX | 85.0 | 220/50 | 0.1 | DN125 | 2850 | 2350×1380×2920 |
| LY-HH900NX | 95.0 | 220/50 | 0.1 | DN150 | 3000 | 2446×1430×3170 |
| LY-HH1100NX | 110 | 220/50 | 0.1 | DN150 | 4300 | 2610×1580×3060 |
| LY-HH1300NX | 130 | 220/50 | 0.1 | DN150 | 5100 | 2900×1400×3079 |
Note：Customized models are available for air flow above 130 m³/min or when special materials, specifications, or inlet temperature requirements are needed. All data is subject to change without prior notice.
The Heatless Regeneration Adsorption Air Dryer is widely used in industries that require stable low-dew-point compressed air, reliable operation, and efficient moisture removal.
Provides dry compressed air for chemical reactions, process systems, and pneumatic controls where moisture can affect product quality and equipment reliability.
Supplies clean and dry compressed air for packaging, conveying, and production lines where air quality and moisture control are important.
Suitable for sterile air systems, cleanroom support, and production processes that require dependable low-moisture compressed air.
Helps prevent condensation in pneumatic tools, testing systems, and precision instruments, improving operating stability and product quality.
Used in textile production processes where dry compressed air supports consistent equipment performance and reduces moisture-related problems.
Supports spray painting, pneumatic tools, and automated production systems by providing dry compressed air that helps improve finish quality and protect equipment.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Stable outlet dew point
Minimum regeneration gas consumption
Long service life of adsorbent
Easy maintenance
High safety
High reliability
Adjustable regeneration gas consumption
Optional dew point monitoring and control system
Stable outlet dew point
Minimum regeneration gas consumption
Long service life of adsorbent
Easy maintenance
High safety
High reliability
Adjustable regeneration gas consumption
Optional dew point monitoring and control system
