Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed;
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Customized according to needs: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs

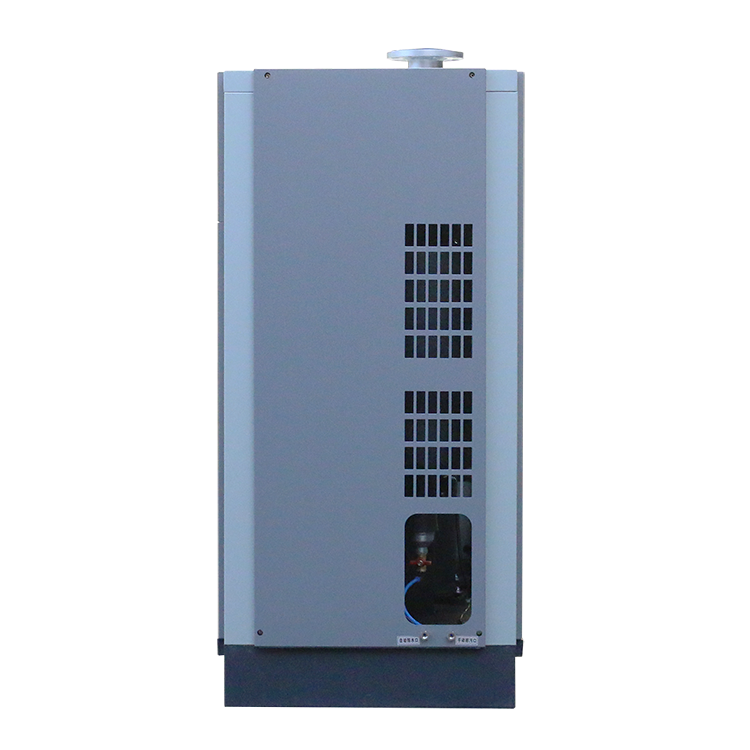

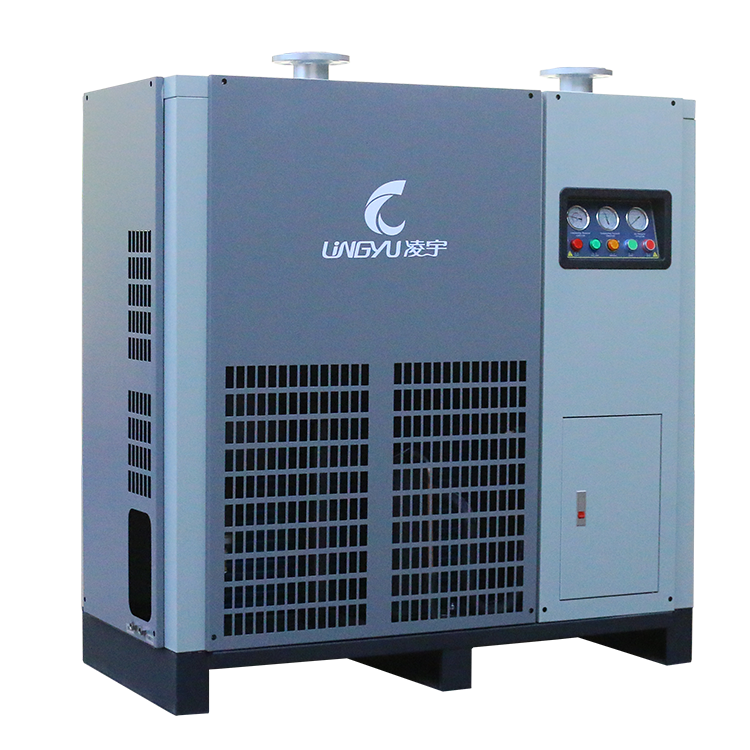

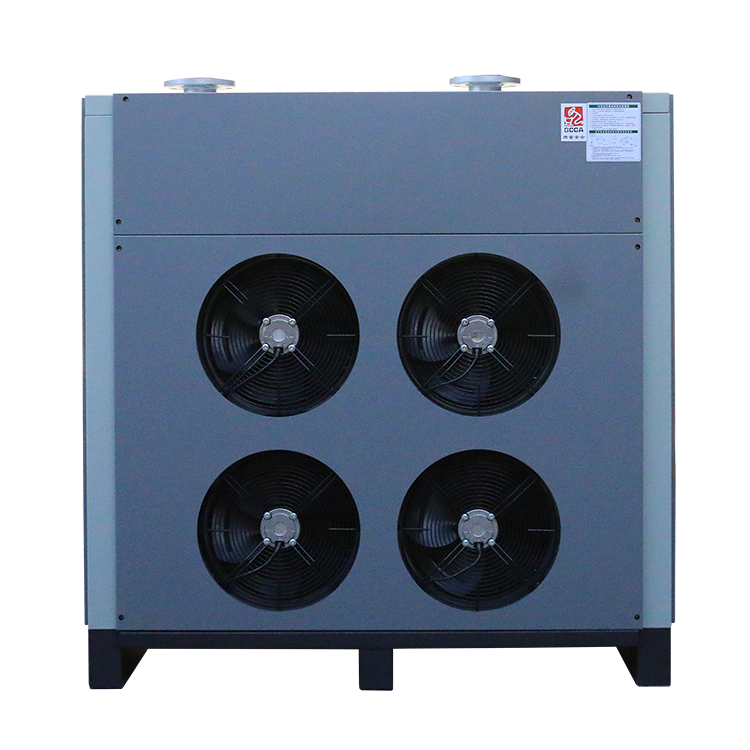

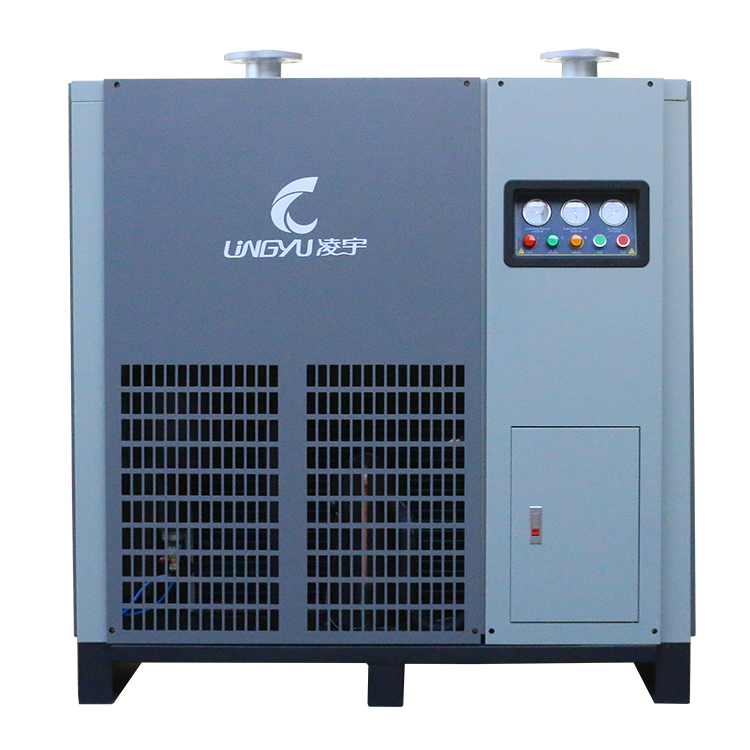

The Shell Tube Refrigerated Air Dryer is designed to provide stable and efficient moisture removal for industrial compressed air systems. It uses a refrigeration drying process to cool hot compressed air, condense water vapor, and separate the liquid moisture before the air enters downstream equipment.
During operation, compressed air passes through the internal heat exchange and refrigeration system, where its temperature is reduced to the required level. As the air cools, water vapor condenses into liquid water, which is then removed through the separation and drainage system. The dried air leaves the dryer with a stable pressure dew point of 2°C to 10°C, helping protect pipelines, pneumatic components, valves, and production equipment from moisture-related damage.
With its air-cooled design, the dryer provides reliable heat dissipation and stable performance under continuous industrial operating conditions. It is especially suitable for applications requiring dependable compressed air quality, moderate pressure loss, and long-term system reliability.
To ensure stable drying performance and reliable long-term operation, the Shell Tube Refrigerated Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean and well-ventilated environment. Stable inlet conditions and proper system configuration help maintain drying efficiency, reduce pressure loss, and extend equipment service life.
| Processing Capacity (m³/min) | Power Supply and Voltage (V/Hz) | Total Power (kW) | Air Inlet and Outlet | Equipment Weight (kg) | Dimensions (mm) L × W × H |
|---|---|---|---|---|---|
| 1.5 | 220/50 | 0.68 | G1″ | 48 | 680 × 440 × 710 |
| 2.5 | 220/50 | 0.83 | G1″ | 58 | 800 × 440 × 800 |
| 3.8 | 220/50 | 1.10 | G1.5″ | 95 | 980 × 500 × 930 |
| 6.5 | 220/50 | 1.50 | G1.5″ | 110 | 1030 × 550 × 1000 |
| 10.5 | 220/50 | 2.20 | G2″ | 160 | 1240 × 650 × 1150 |
| 13.5 | 380/50 | 3.10 | G2.5″ | 225 | 1350 × 670 × 1300 |
| 17.0 | 380/50 | 3.10 | G2.5″ | 235 | 1350 × 670 × 1300 |
| 21.5 | 380/50 | 5.20 | DN80 | 295 | 1450 × 700 × 1510 |
| 25.0 | 380/50 | 5.20 | DN80 | 345 | 1450 × 700 × 1510 |
| 28.5 | 380/50 | 5.50 | DN80 | 430 | 1550 × 850 × 1595 |
| 32.0 | 380/50 | 6.20 | DN80 | 450 | 1550 × 850 × 1595 |
| 37.0 | 380/50 | 7.80 | DN100 | 550 | 1700 × 850 × 1740 |
| 41.5 | 380/50 | 7.80 | DN100 | 600 | 1700 × 850 × 1740 |
| 45.0 | 380/50 | 10.0 | DN100 | 630 | 1830 × 950 × 1840 |
| 50.0 | 380/50 | 10.0 | DN100 | 680 | 1830 × 950 × 1840 |
| 55.0 | 380/50 | 11.7 | DN125 | 780 | 2020 × 950 × 1850 |
| 60.0 | 380/50 | 11.7 | DN125 | 830 | 2020 × 950 × 1850 |
| 65.0 | 380/50 | 11.9 | DN125 | 950 | 2300 × 1300 × 1930 |
| 75.0 | 380/50 | 13.9 | DN125 | 1050 | 2390 × 1395 × 1805 |
| 85.0 | 380/50 | 16.2 | DN125 | 1200 | 2400 × 1420 × 1860 |
| 95.0 | 380/50 | 16.7 | DN150 | 1350 | 3000 × 1550 × 2145 |
| 110.0 | 380/50 | 19.7 | DN150 | 1450 | 3100 × 1600 × 2180 |
Note: For air volume above 110 m³/min, or for special requirements related to specifications, materials, or temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice.
The Shell Tube Refrigerated Air Dryer is widely used in industrial applications that require stable moisture removal, reliable compressed air quality, and continuous-duty performance.
Provides dry compressed air to improve ozone generation stability and help protect internal components from moisture.
Suitable for analytical systems and laboratory equipment that require stable and low-moisture compressed air for accurate operation.
Helps prevent condensation and corrosion in waveguide systems and related communication equipment.
Used in test chambers and controlled environments where consistent air dryness supports accurate simulation and testing conditions.
Supplies dry compressed air for fire protection systems, helping reduce internal corrosion and moisture buildup in pipelines.
Provides clean and dry compressed air for production lines and sensitive equipment where moisture can affect product quality and system reliability.
Suitable for packaging, conveying, and process air applications where stable air quality and moisture control are important for hygiene and production consistency.
Used in pneumatic tools, automation systems, and centralized compressed air networks where dependable moisture control is required to protect downstream equipment.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
The 200 CFM refrigerated air dryer (air cooled) is a compact and efficient solution for removing moisture from compressed air systems. Designed for mid-sized industrial applications, this dryer ensures clean, dry air to protect downstream equipment from corrosion, contamination, and failure.
With air-cooled technology and stable dew point performance, the 200 CFM refrigerated air dryer (air cooled) offers a reliable and energy-saving approach to compressed air drying.
The 100 CFM refrigerated air dryer (air cooled) is a high-performance compressed air treatment solution designed to remove moisture from compressed air systems efficiently. Ideal for small to medium-sized industrial applications, this air dryer ensures clean, dry air to protect downstream equipment and improve productivity.
With advanced air-cooling technology, compact design, and energy-efficient components, the 100 CFM refrigerated air dryer (air cooled) is the perfect choice for users seeking reliability, efficiency, and long service life.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
