Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The communication can meet the user’s requirements such as RS-485 (standard), IoT connection, etc.
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；

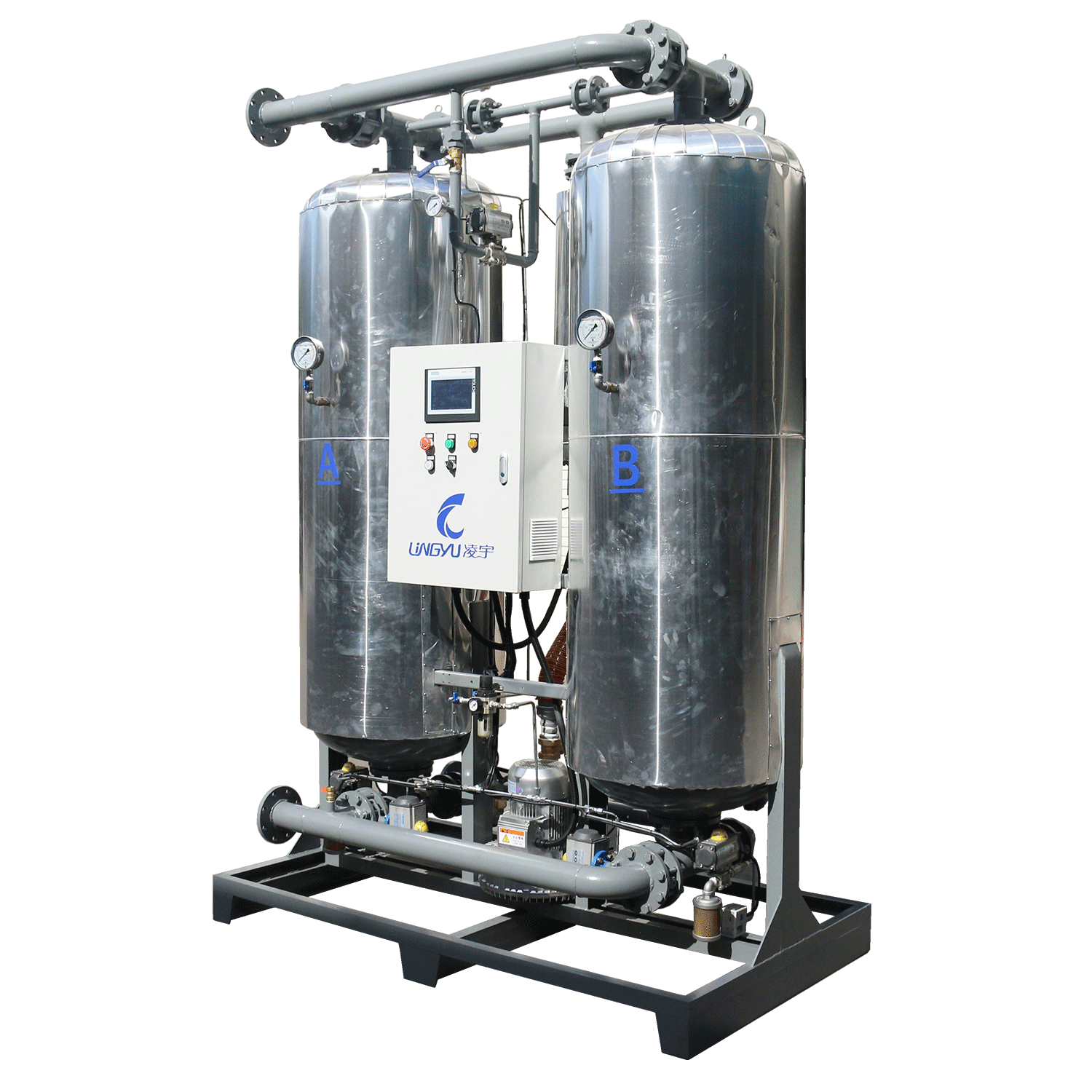

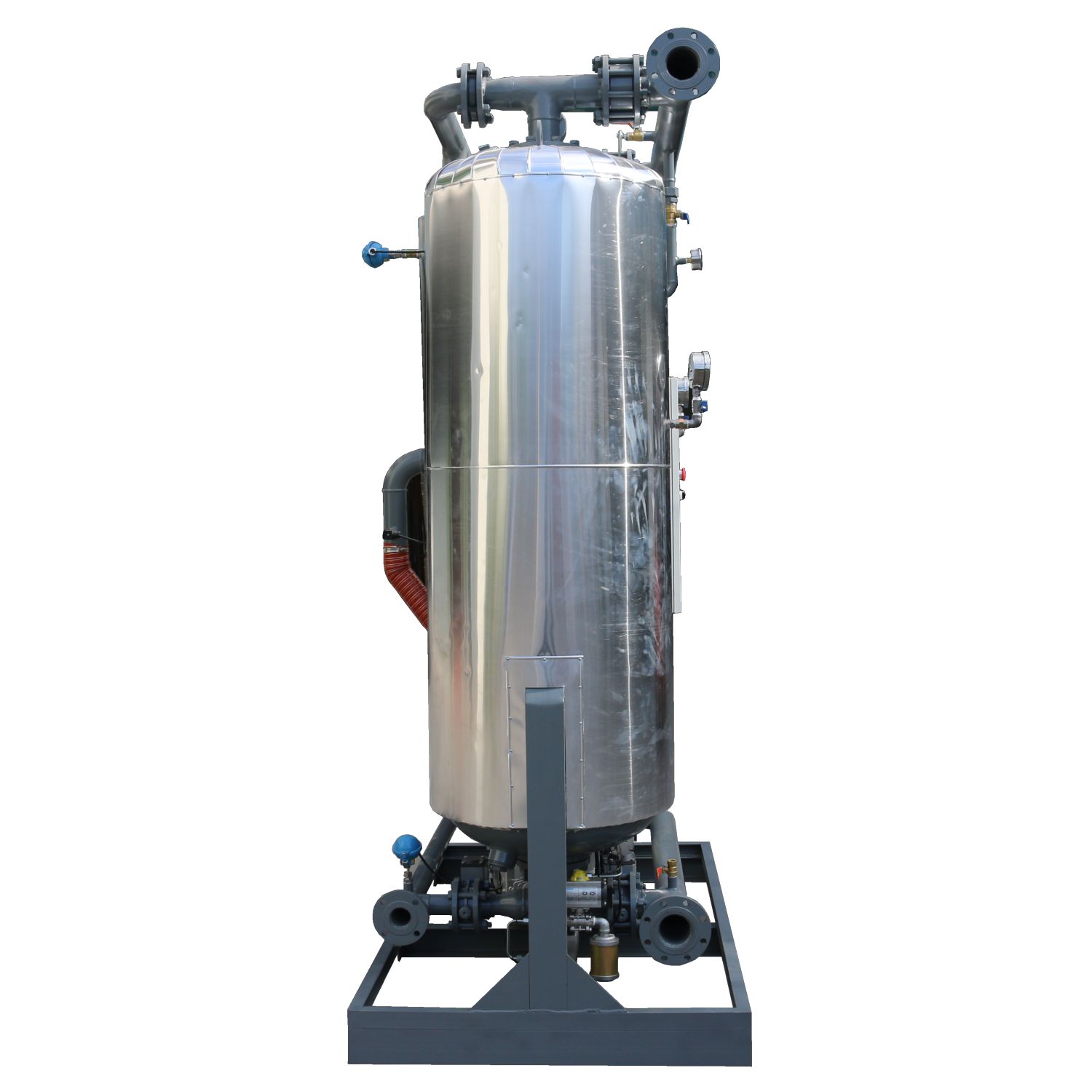

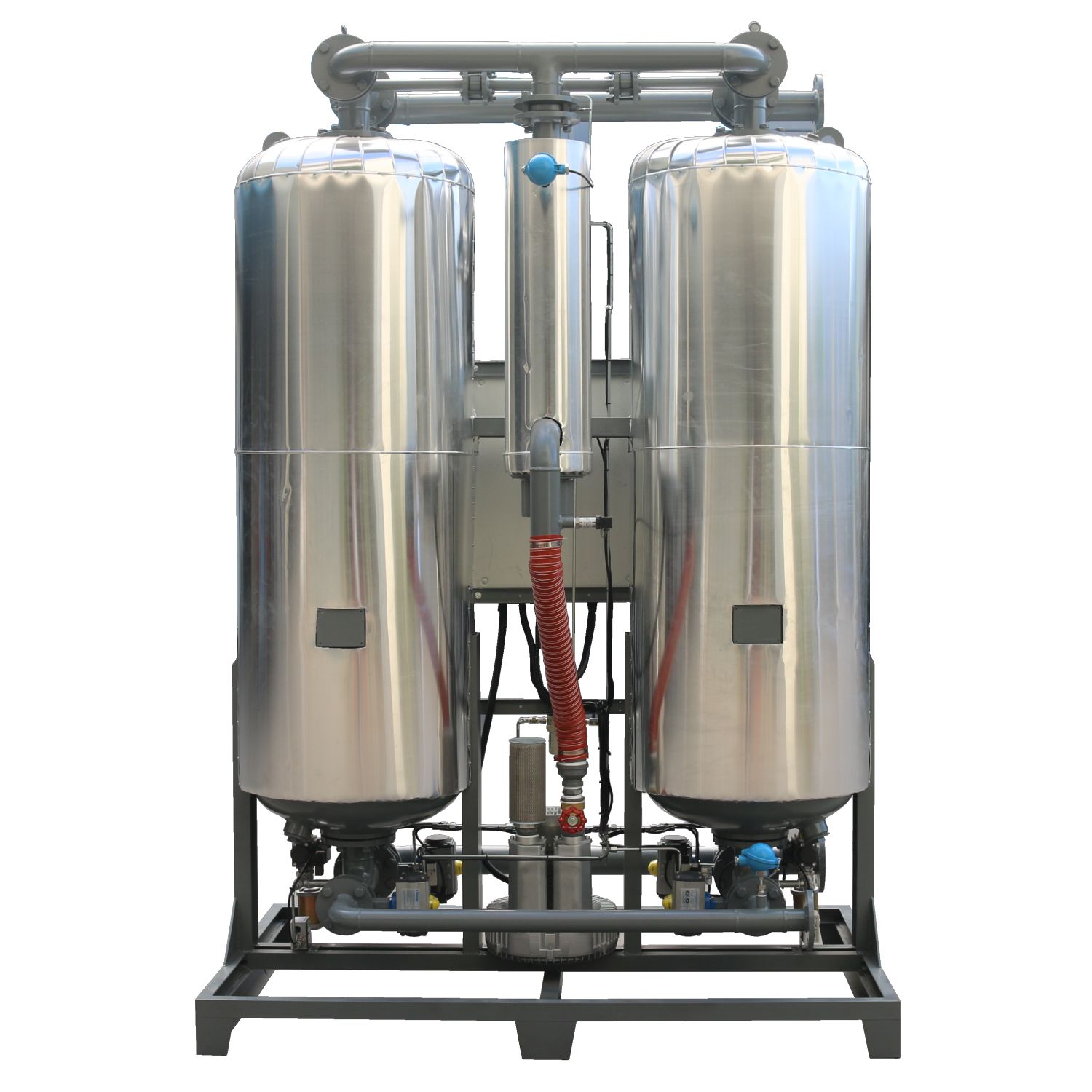

The stainless steel blast heating regeneration adsorption dryer is designed for compressed air systems that require ultra-dry, oil-free, and energy-efficient air treatment. It is an upgraded version of the micro-gas-consumption blast heat regeneration adsorption dryer, featuring an additional intermediate cooler to improve regeneration efficiency and overall drying performance.
During operation, ambient air is drawn in by a blower and heated by a built-in heater. The heated air then passes through the saturated adsorption tower, desorbing the moisture accumulated in the adsorbent. After the heating stage, the hot regeneration air circulates through the intermediate cooler and the regeneration tower, cooling the tower in a continuous closed-loop cycle.
Because the full regeneration process is completed without consuming compressed air, the system achieves zero compressed air consumption during regeneration, helping reduce energy use and operating costs. By combining TSA (Temperature Swing Adsorption) technology with blower thermal purge regeneration, the dryer delivers reliable moisture removal, stable dew point performance, and efficient long-term operation.
To ensure stable performance and long service life, the stainless steel blast heating regeneration adsorption dryer should be used under the following recommended conditions:
For the best drying result, the system should be supplied with clean and stable compressed air. Proper pre-filtration and oil removal are recommended to protect the adsorbent, maintain drying efficiency, and ensure consistent outlet air quality.
| Model | Capacity (m³/min) | Gas Connection Pipe | Power (kW) | Dimensions (mm) |
|---|---|---|---|---|
| HRB-E100 | 13.5 | DN50 | 7.5 | 1390×970×2297 |
| HRB-E120 | 17 | DN65 | 10.2 | 1750×1050×2271 |
| HRB-E150 | 21.5 | DN80 | 11.8 | 1750×1050×2471 |
| HRB-E180 | 25 | DN80 | 14.2 | 1800×1050×2597 |
| HRB-E200 | 28.5 | DN80 | 16.8 | 1900×1100×2454 |
| HRB-E250 | 32 | DN80 | 18.4 | 1920×1260×2600 |
| HRB-E300 | 37 | DN100 | 21.5 | 2175×1340×2750 |
| HRB-E350 | 41.5 | DN100 | 25.9 | 2200×1350×2752 |
| HRB-E400 | 45 | DN100 | 27.5 | 2400×1500×2852 |
| HRB-E450 | 50 | DN100 | 30 | 2540×1670×2938 |
| HRB-E500 | 55 | DN125 | 31.5 | 2650×1700×3138 |
| HRB-E550 | 60 | DN125 | 33.5 | 2700×1840×3150 |
| HRB-E600 | 65 | DN125 | 36.3 | 2750×1840×2888 |
| HRB-E700 | 75 | DN125 | 41.1 | 2750×1840×2888 |
| HRB-E800 | 85 | DN125 | 47.8 | 3100×1900×3050 |
| HRB-E900 | 95 | DN150 | 52.6 | 3250×2100×2950 |
| HRB-E1000 | 110 | DN150 | 59 | 3250×2100×2950 |
| HRB-E1200 | 120 | DN150 | 63.8 | 3500×2200×3341 |
| HRB-E1400 | 140 | Dn200 | 74.1 | 3700×2400×3420 |
| HRB-E1600 | 160 | DN200 | 89 | 3900×2420×3500 |
| HRB-E1800 | 180 | DN200 | 98.5 | 4100×2200×3050 |
| HRB-E2100 | 210 | DN200 | 110.5 | 4200×2835×3150 |
| HRB-E2600 | 260 | DN250 | 136.4 | 5200×2500×3300 |
Note：For air volumes above 260 m³/min or special specifications (materials, temperature, or pressure), please contact our company or authorized dealers. Data is for reference only and may change without prior notice.
The stainless steel blast heating regeneration adsorption dryer is widely used in industries that require clean, dry, oil-free compressed air together with excellent corrosion resistance and energy-efficient operation.
Suitable for compressed air systems used in chemical processing and petrochemical production, where stable low-moisture air and corrosion-resistant equipment are essential for safe and reliable operation.
Ideal for food processing, filling, packaging, and conveying applications where clean and dry compressed air is required. The stainless steel structure also supports hygienic production environments.
Used in pharmaceutical production and packaging processes that demand clean, oil-free, and stable compressed air to protect product quality and maintain process consistency.
Provides ultra-dry compressed air for sensitive manufacturing environments where moisture control is critical to equipment protection and product quality.
Suitable for industrial air systems that require energy-efficient drying, low pressure loss, and reliable long-term performance, especially in applications where compressed air quality directly affects downstream equipment.
Well suited for any industry requiring energy-efficient, high-quality, and low-dew-point compressed air, particularly where compressed air savings and continuous operation are important.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The Blower & Zero Purge Adsorption Dryer is an advanced solution for industrial compressed air systems, designed to provide continuous, energy-efficient moisture removal.
This dryer combines blower-assisted regeneration with a zero purge cycle, ensuring the regeneration process consumes no compressed air. Ambient air is drawn in by the blower, heated to desorb moisture from the adsorbent, and then cooled through an intermediate cooler in a continuous closed-loop cycle. The result is a stable low dew point with minimal energy usage, protecting downstream equipment and ensuring consistent air quality in industrial operations.
The communication can meet the user's requirements such as RS-485 (standard), IoT connection, etc.
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；
