Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

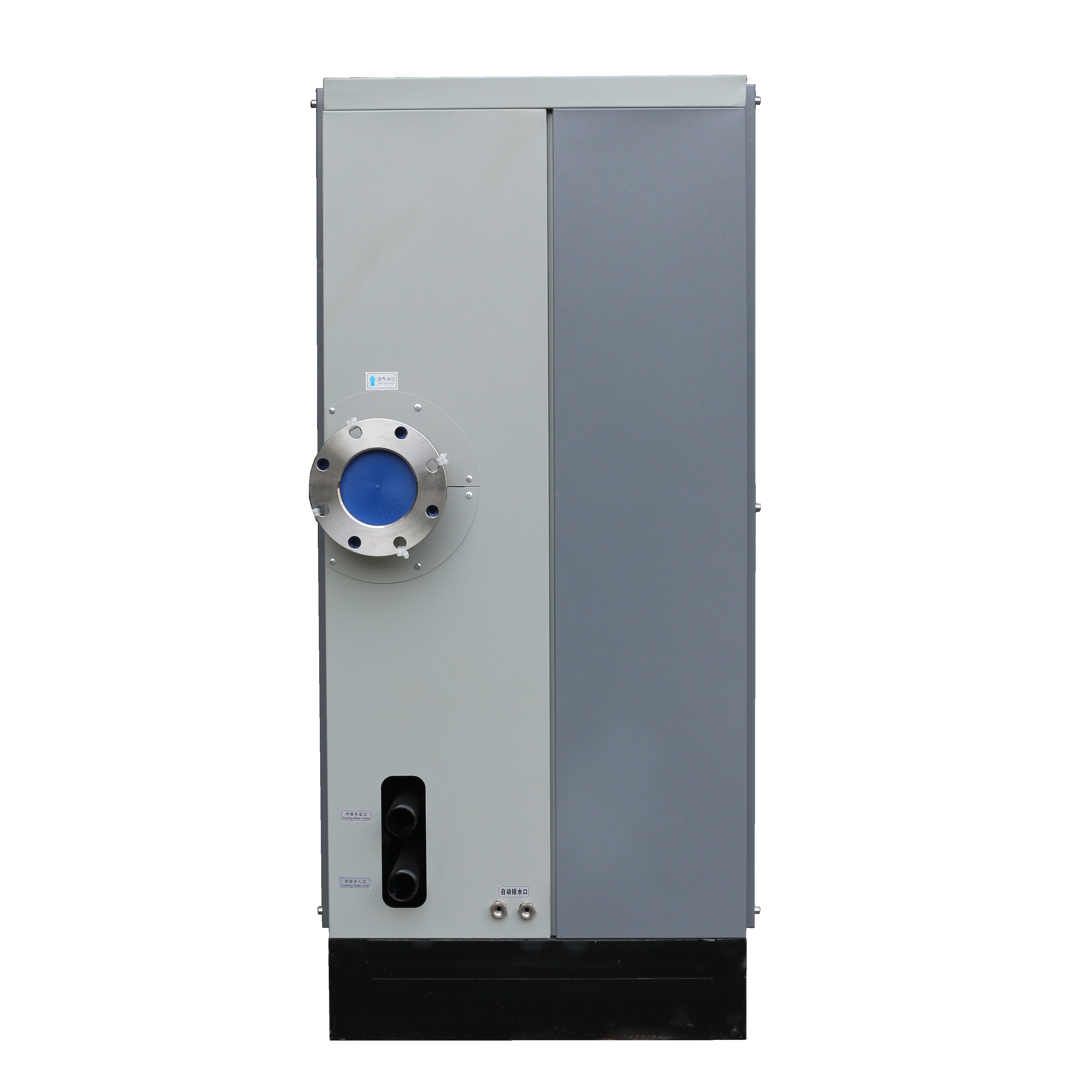

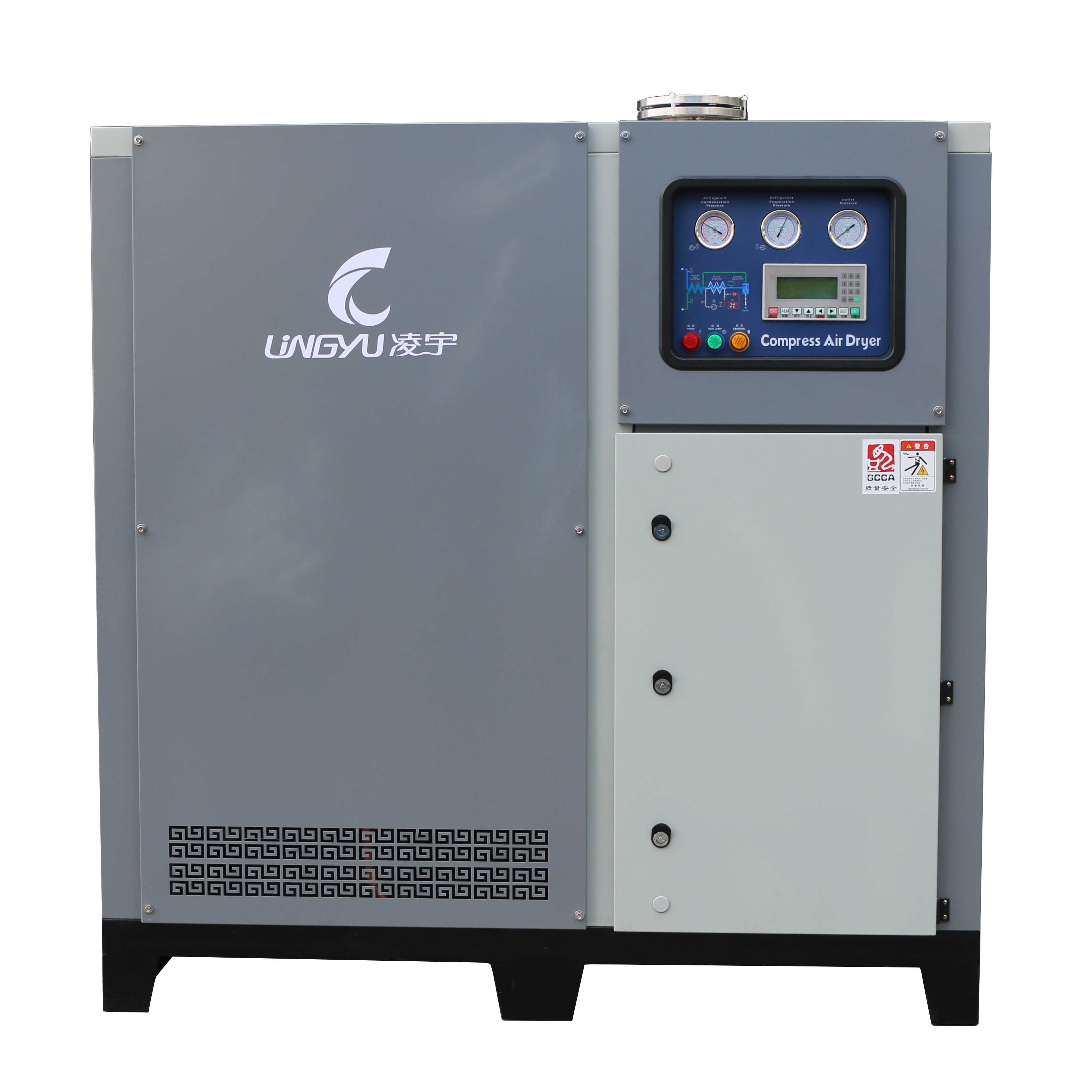

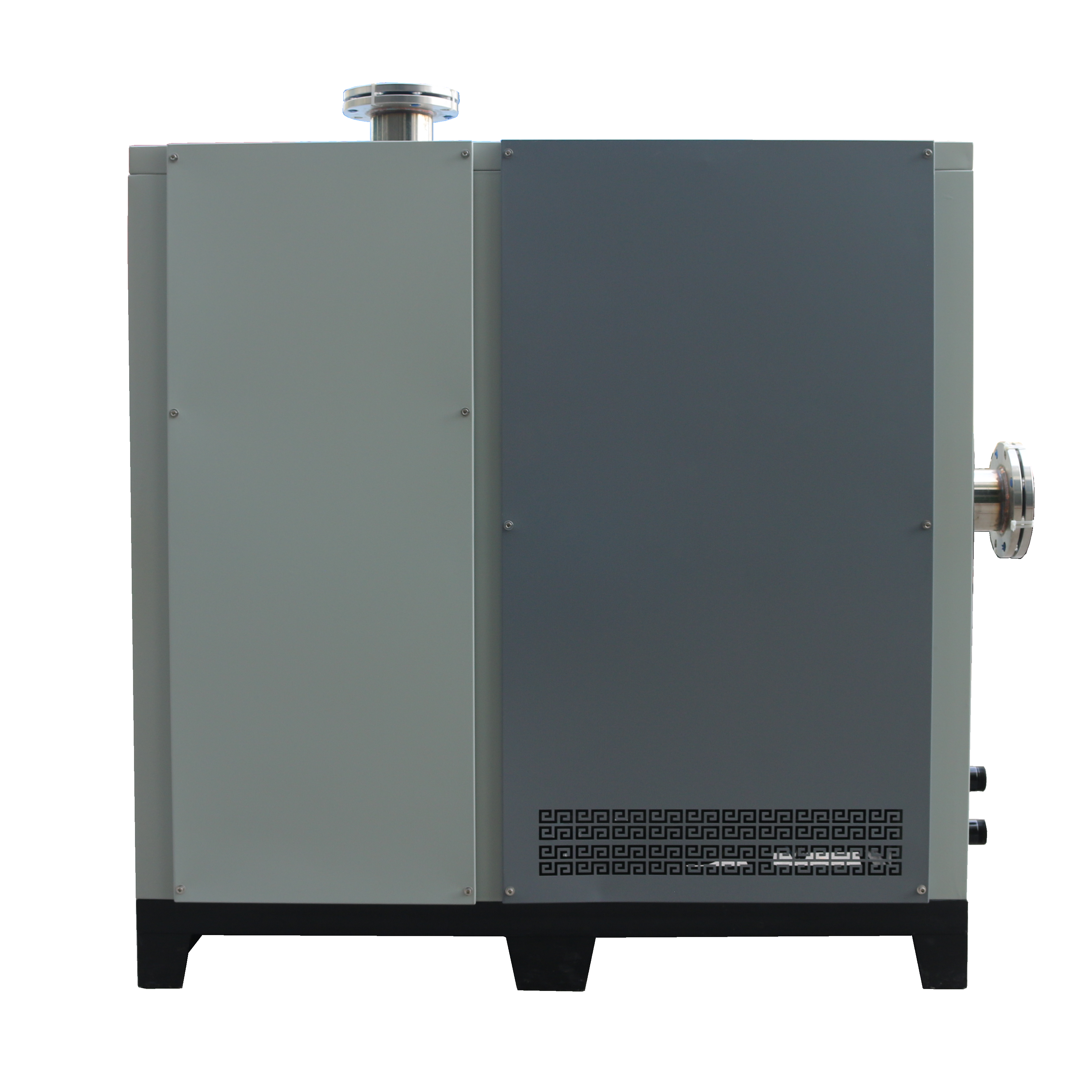

The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
✅ High Volume Capacity: Supports compressed air flow rates up to 1340 SCFM, ideal for large-scale operations.
✅ Water Cooled System: Efficient heat removal through water circulation, reducing electrical load and improving cooling performance in hot environments.
✅ Stable Dew Point Performance: Delivers consistent pressure dew point between 2–10°C (35.6–50°F).
✅ Energy Efficient: Lower power consumption than air-cooled units in environments with available cooling water.
✅ Compact Design: Smaller footprint compared to equivalent air-cooled models.
✅ Automatic Drain System: Timely removal of condensate to prevent internal water accumulation.
✅ Heavy-Duty Construction: Industrial-grade steel cabinet with rust-resistant finish.
The 1340 SCFM refrigerated air dryer (water cooled) is built for intensive-duty cycles and stable long-term operation.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Cooling Water Inlet Temperature: ≤ 32°C (89.6°F)
Cooling Water Flow Rate: Approx. 80–100 L/min
Power Supply: 380V / 3Ph / 50Hz (customizable)
Installation Site: Indoor, clean, and ventilated area
Refrigerant: R407C / R134a (environmentally friendly)
| Model | 1340 SCFM Refrigerated Air Dryer (Water Cooled) |
|---|---|
| Rated Capacity | 1340 SCFM (Standard Cubic Feet per Minute) |
| Cooling Method | Water Cooled |
| Refrigerant | R407C / R134a |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Power Supply | 380V / 3Ph / 50Hz |
| Water Connection Size | 1″ BSP or customized |
| Air Inlet/Outlet Size | 3″ Flanged |
| Dimensions (L×W×H) | 1900 × 1100 × 1750 mm |
| Weight | 540 kg |
The 1340 SCFM refrigerated air dryer (water cooled) combines cooling efficiency with high flow capacity to meet the toughest industrial demands.
In Malaysia’s hot, humid, and high-rainfall environment, large compressed air systems face a higher risk of condensation, water carryover, corrosion, and unstable pneumatic performance. For plants that require continuous-duty drying and already have cooling water infrastructure, the 1340 SCFM refrigerated air dryer (water cooled) is well suited for medium- to large-scale industrial operations that need reliable moisture removal and stable day-to-day performance.
The 1340 SCFM refrigerated air dryer (water cooled) is suitable for applications in Malaysia such as:
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 3885 CFM water-cooled refrigerated air dryer is an industrial moisture-removal system designed for facilities that require stable and efficient drying performance. Suitable for large compressed air networks, it provides reliable dew point control and long-term protection for downstream equipment in demanding environments.
Engineered for continuous operation, this high-capacity unit combines advanced refrigeration components with an energy-efficient water-cooling design. Its consistent performance makes it ideal for industries such as petrochemical processing, metal fabrication, manufacturing, and pharmaceutical production—any application where clean, dry compressed air is essential.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
