Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

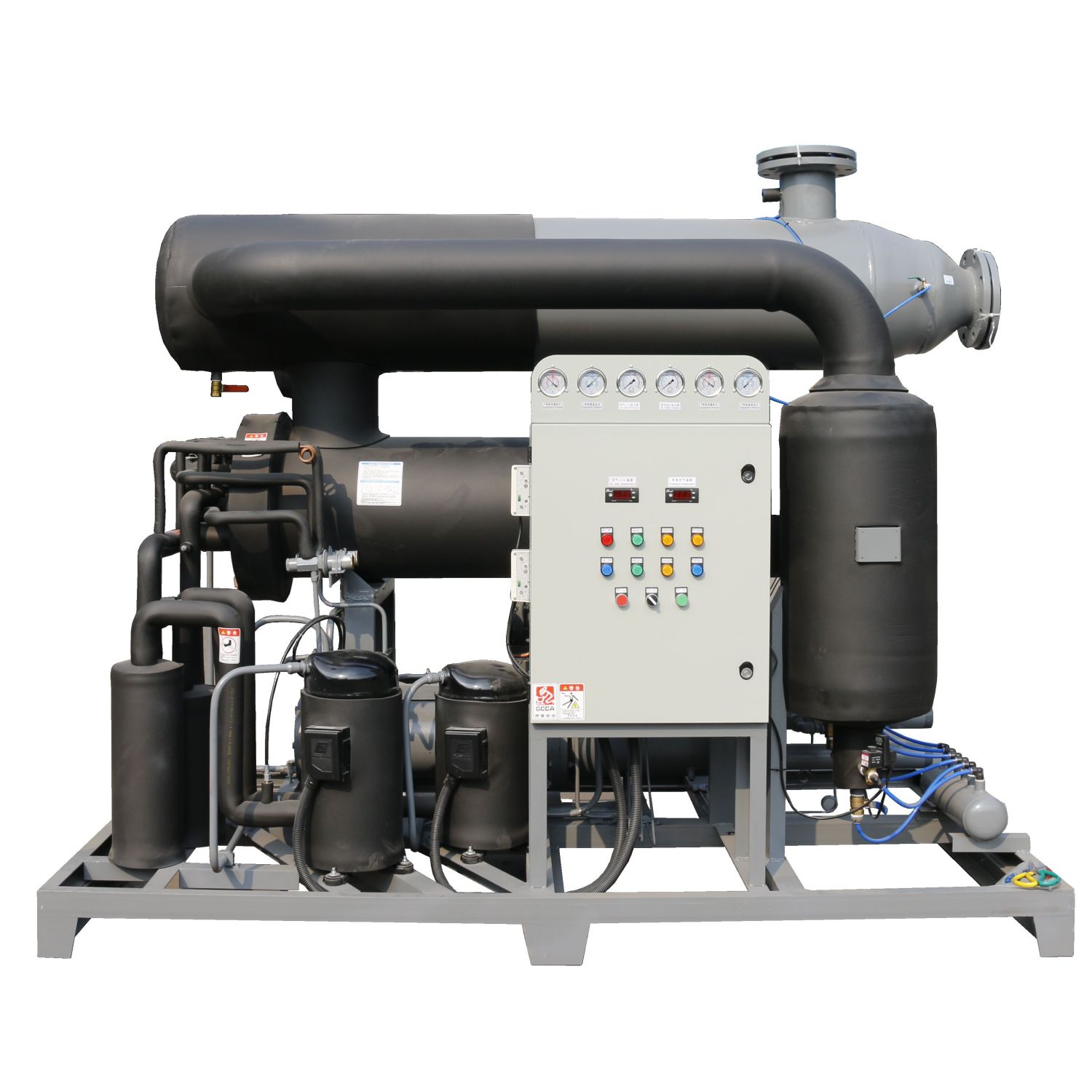

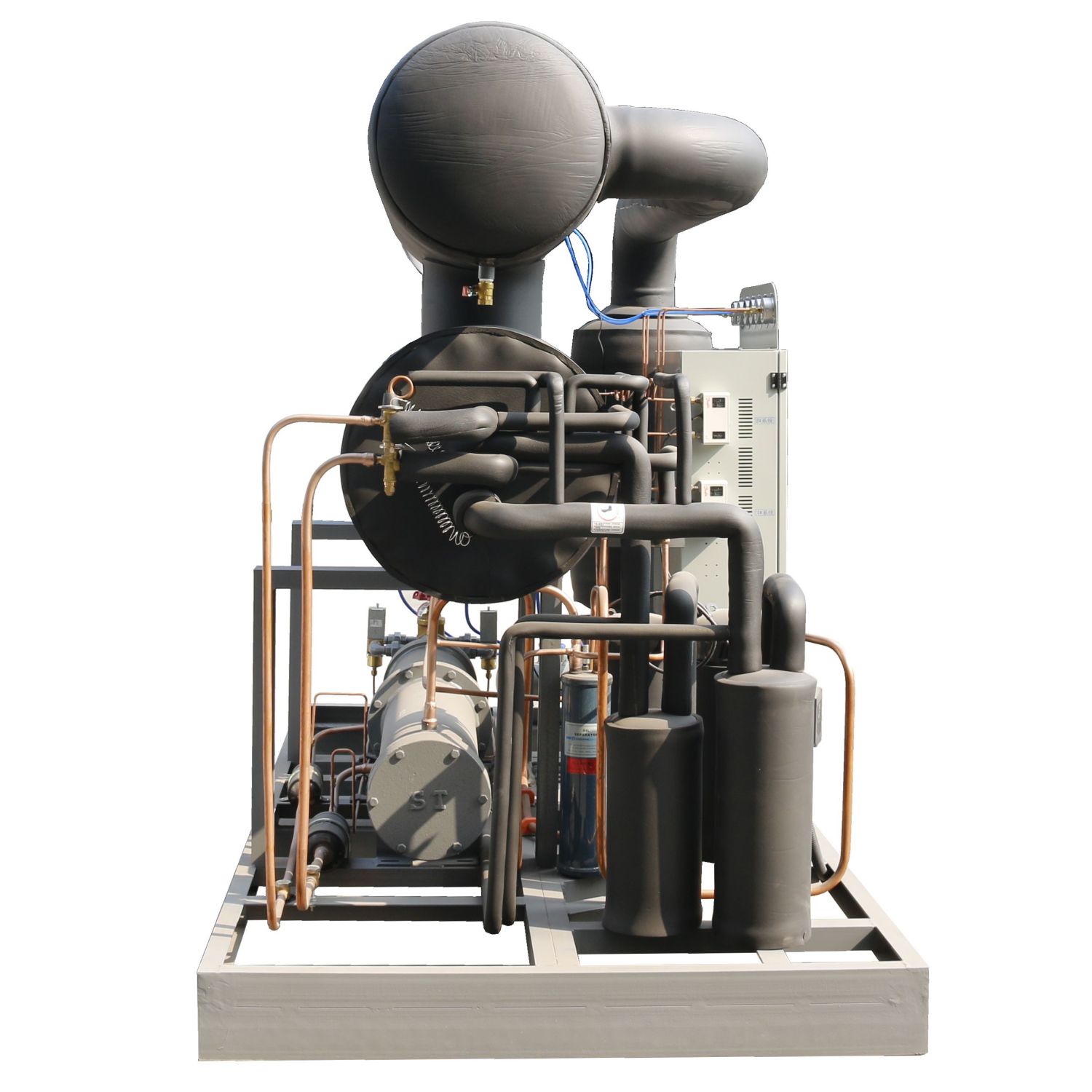

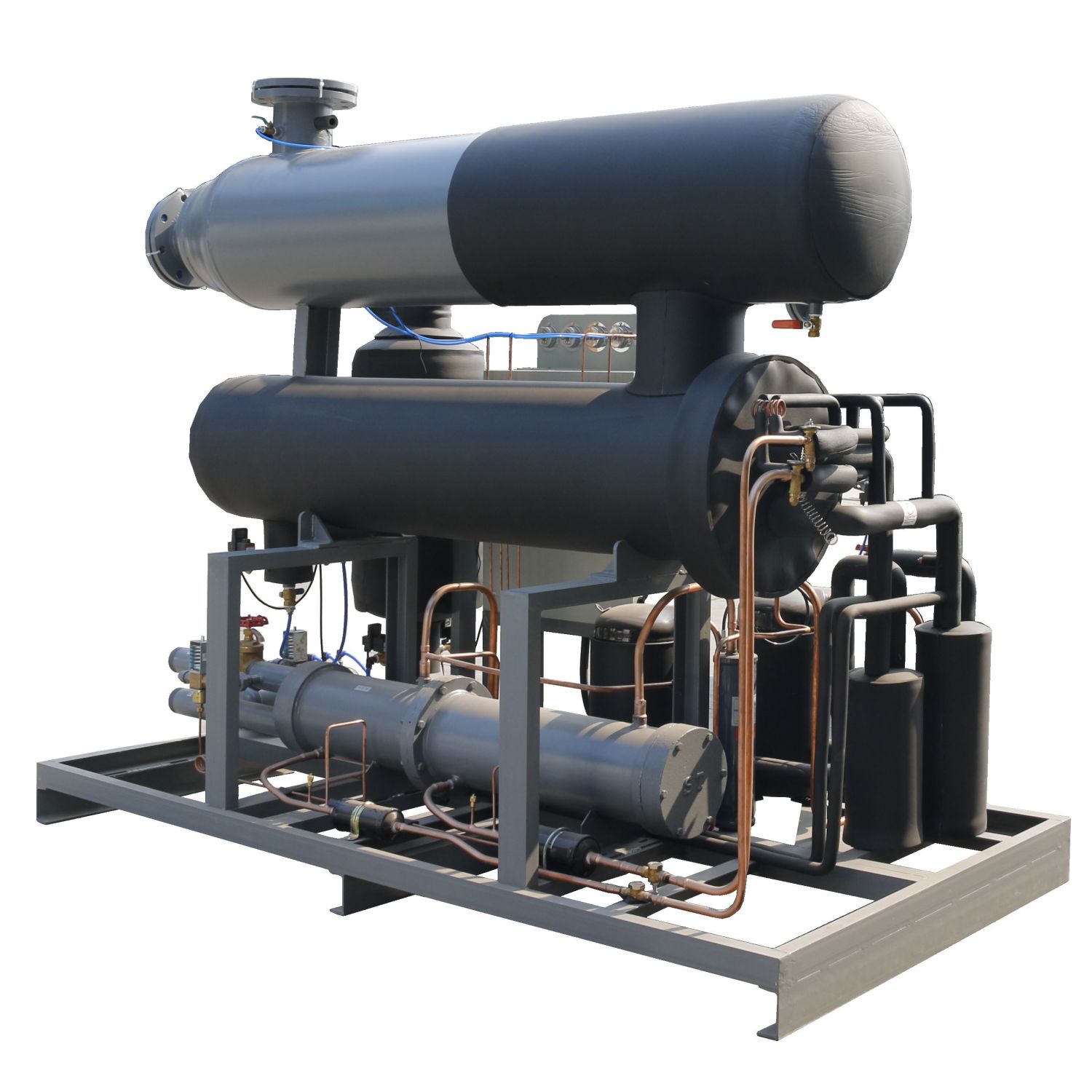

The 3885 CFM water-cooled refrigerated air dryer is an industrial moisture-removal system designed for facilities that require stable and efficient drying performance. Suitable for large compressed air networks, it provides reliable dew point control and long-term protection for downstream equipment in demanding environments.
Engineered for continuous operation, this high-capacity unit combines advanced refrigeration components with an energy-efficient water-cooling design. Its consistent performance makes it ideal for industries such as petrochemical processing, metal fabrication, manufacturing, and pharmaceutical production—any application where clean, dry compressed air is essential.
The 3885 CFM Water-Cooled Refrigerated Air Dryer is designed for large industrial compressed air systems that require stable moisture removal and reliable continuous operation. It uses a refrigeration-based drying process to cool compressed air, condense water vapor, and discharge the condensate from the system before the air reaches downstream equipment.
During operation, hot and moisture-laden compressed air enters the dryer and passes through the internal heat exchange and refrigeration system. As the air temperature drops, water vapor condenses into liquid, which is then removed through the automatic drain system. The dried air is discharged with a stable pressure dew point of 2–10°C, helping protect pipelines, air tools, valves, and production equipment from moisture damage.
With its water-cooled heat dissipation design, this model offers efficient thermal performance and dependable operation in high-temperature environments or heavy-duty industrial conditions. The combination of a durable refrigeration system, smart control interface, and industrial-grade construction makes it well suited for 24/7 compressed air treatment.
To ensure stable performance and reliable drying efficiency, the 3885 CFM Water-Cooled Refrigerated Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean indoor environment with stable power supply and proper cooling water conditions. Using pre-filtration and after-filtration is recommended to improve compressed air quality and help protect both the dryer and downstream equipment.
| Parameter | Specification |
|---|---|
| Model | 3885 CFM Water-Cooled Refrigerated Dryer |
| Rated Capacity | 3885 CFM |
| Cooling Method | Water Cooled |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2–10°C |
| Refrigerant | R407C / R134a |
| Power Requirements | 380V / 3Ph / 50Hz |
| Water Connection | 1½” BSP (custom options available) |
| Air Inlet/Outlet | 4″ Flanged |
| Dimensions (L × W × H) | 2600 × 1500 × 2200 mm |
| Net Weight | 950 kg |
In Malaysia’s hot, humid, and high-rainfall environment, large compressed air systems are exposed to heavy moisture loads and demanding continuous-duty conditions. The 3885 CFM Water-Cooled Refrigerated Air Dryer is well suited for large industrial facilities that require stable moisture removal, reliable 24/7 operation, and efficient heat dissipation through cooling water infrastructure.
The 3885 CFM Water-Cooled Refrigerated Air Dryer is suitable for applications in Malaysia such as:
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
The 8830 CFM refrigerated air dryer (water cooled) is a top-tier industrial solution engineered to remove moisture from large-scale compressed air systems. Built for ultra-high capacity applications, this dryer ensures consistently dry air with a stable dew point and superior thermal control using an advanced water-cooled condenser system.
Designed for 24/7 operation in the most demanding environments, the 8830 CFM refrigerated air dryer (water cooled) guarantees optimal air quality, minimal pressure loss, and extended equipment lifespan across heavy-duty industries.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
