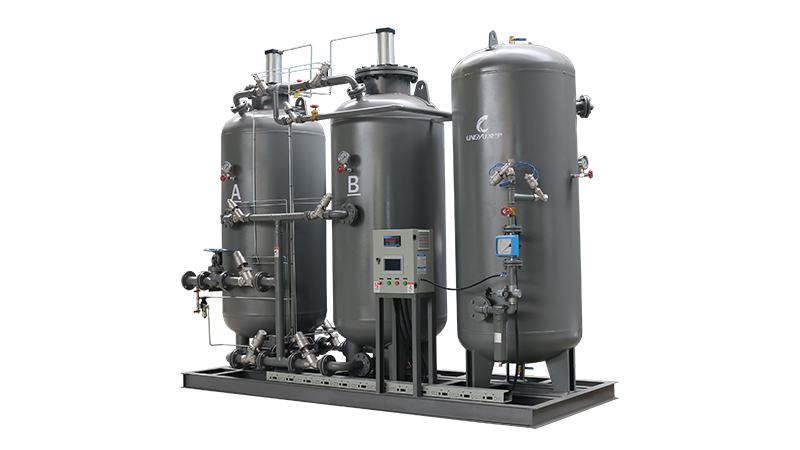

The 99% PSA Nitrogen Generator is designed to provide a stable, continuous, and cost-effective nitrogen supply for a wide range of industrial applications. By using Pressure Swing Adsorption (PSA) technology, the system separates nitrogen from compressed air through high-performance carbon molecular sieve (CMS), delivering reliable on-site nitrogen production without the need for cylinders or liquid nitrogen.

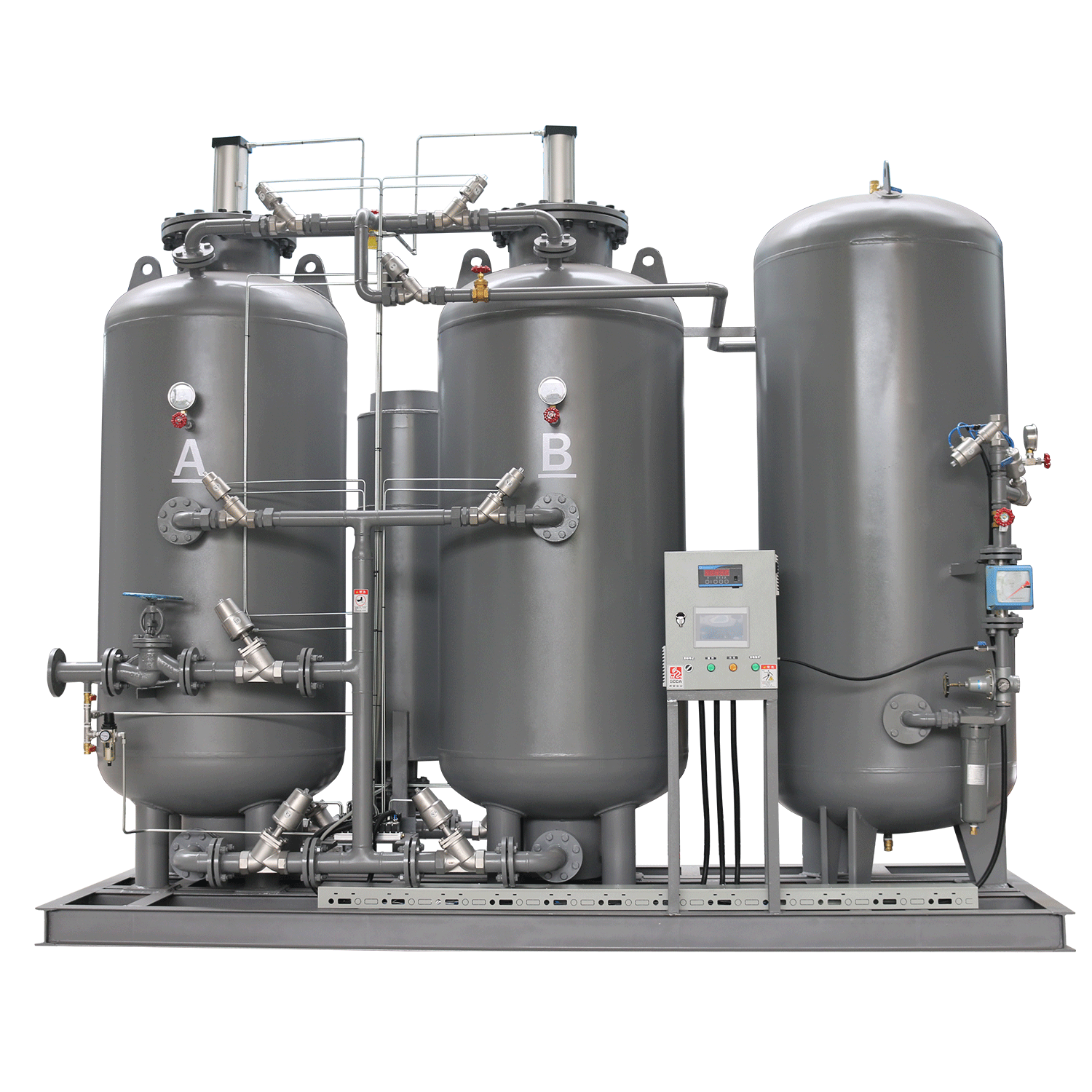

The generator operates with a dual-tower adsorption system. During operation, compressed air enters one tower, where oxygen, moisture, and trace gases are selectively adsorbed by the CMS, while nitrogen passes through as the product gas. At the same time, the second tower enters the regeneration stage, releasing the adsorbed oxygen safely into the atmosphere.
When the first tower reaches saturation, the PLC control system automatically switches the adsorption process to the second tower while the first tower regenerates. This alternating cycle ensures uninterrupted nitrogen production, stable 99% purity, and consistent long-term performance for industrial use.
To ensure stable nitrogen purity and reliable system operation, the PSA nitrogen generator should be used under the following recommended conditions:
- Nitrogen purity: 99%
- Inlet temperature: ≤ 40℃
- Inlet pressure: 0.5 – 0.8 MPa
- Nitrogen dew point: ≤ -40℃
- Switching cycle: 45 – 60 s
- Ambient temperature: ≤ 40℃
- Voltage / frequency: 220V / 50Hz
- Noise level: ≤ 75 dB
For the best operating result, the generator should be supplied with clean and stable compressed air. Proper pre-treatment, including filtration and air drying, is recommended to protect the carbon molecular sieve, maintain nitrogen purity, and extend the service life of the equipment.
| Model | Nitrogen Production | Inlet Pipe Size | Outlet Pipe Size | H × L × W | Effective Air Consumption |
|---|
| LYZD-B15 | 15 | DN15 | DN15 | 1500×850×500 | 0.55 |
| LYZD-B25 | 25 | DN20 | DN15 | 1800×900×600 | 0.91 |
| LYZD-B35 | 35 | DN20 | DN15 | 1900×1000×600 | 1.28 |
| LYZD-B45 | 45 | DN20 | DN15 | 2400×1150×700 | 1.65 |
| LYZD-B50 | 50 | DN25 | DN25 | 2400×1150×700 | 2 |
| LYZD-B60 | 60 | DN25 | DN25 | 2600×1150×800 | 1.83 |
| LYZD-B70 | 70 | DN32 | DN25 | 2600×1200×800 | 2.56 |
| LYZD-B90 | 90 | DN32 | DN32 | 2600×1400×900 | 3.3 |
| LYZD-B110 | 110 | DN40 | DN40 | 2600×1500×900 | 4.03 |
| LYZD-B120 | 120 | DN40 | DN40 | 2750×1600×900 | 4.4 |
| LYZD-B140 | 140 | DN40 | DN40 | 2750×1750×900 | 5.13 |
| LYZD-B160 | 160 | DN40 | DN40 | 2750×1900×1000 | 5.86 |
| LYZD-B180 | 180 | DN50 | DN40 | 2650×2160×1280 | 6.6 |
| LYZD-B220 | 220 | DN50 | DN40 | 2890×2200×1200 | 8.06 |
| LYZD-B260 | 260 | DN50 | DN50 | 2890×2200×1200 | 9.53 |
| LYZD-B310 | 310 | DN65 | DN50 | 2900×2500×1350 | 11.36 |
| LYZD-B350 | 350 | DN65 | DN50 | 2900×2500×1350 | 12.83 |
| LYZD-B400 | 400 | DN65 | DN50 | 2900×2500×1350 | 14.67 |
| LYZD-B440 | 440 | DN65 | DN50 | 2900×2500×1350 | 16.13 |
| LYZD-B480 | 480 | DN80 | DN80 | 2900×2500×1350 | 17.6 |
| LYZD-B530 | 530 | DN80 | DN80 | 2900×2500×1400 | 19.43 |
Note:The data listed in this table are based on the adsorption pressure of 0.8MPa (gauge pressure) as the raw air, 20°C ambient temperature, and 80% relative humidity as the design basis. The data provided in this sample is for reference only.
In Malaysia’s hot, humid, and high-moisture environment, many industrial processes face challenges such as oxidation, condensation, and inconsistent production conditions.
The 99% PSA Nitrogen Generator provides a highly economical and continuous on-site nitrogen solution, making it ideal for applications where basic oxygen reduction and stable gas supply are required, without the need for high-purity nitrogen.
The 99% PSA Nitrogen Generator is suitable for applications in Malaysia such as:
- Food Processing and General Packaging – Used for nitrogen flushing and packaging protection to reduce oxidation, control moisture-related spoilage, and extend shelf life in humid storage and distribution conditions.
- General Manufacturing and Industrial Use – Provide a cost-effective nitrogen source for production lines, air replacement, and protective atmospheres in small to medium factories.
- Plastics, Rubber, and Polymer Processing – Support molding, extrusion, and processing applications where nitrogen helps improve product consistency and reduce oxidation defects.
- Chemical Processing and Storage Systems – Suitable for basic nitrogen blanketing, purging, and oxygen reduction in tanks and pipelines where ultra-high purity is not required.
- Metal Fabrication and Welding Support – Reduce oxidation in cutting, welding assistance, and general metal processing applications to improve surface quality.
- Tire Inflation and Industrial Gas Replacement – Provide a safer and more stable alternative to compressed air for tire inflation and general gas filling applications.
- Environmental and Utility Systems – Used in controlled environments and general plant nitrogen networks where stable, low-cost nitrogen supply is needed.
- Laboratories and Non-Critical Applications – Provide an economical nitrogen source for general laboratory use, testing, and equipment support where high purity is not essential.
