Supports customization with a processing capacity of up to 70630 CFM (cubic feet per minute).
Automatic stop and start switching;
online real-time monitoring of nitrogen purity and flow rate;
long-term alarm and automatic shutdown of unqualified nitrogen;
automatic carbon molecular sieve compression device；
digital touch screen display of operating status;

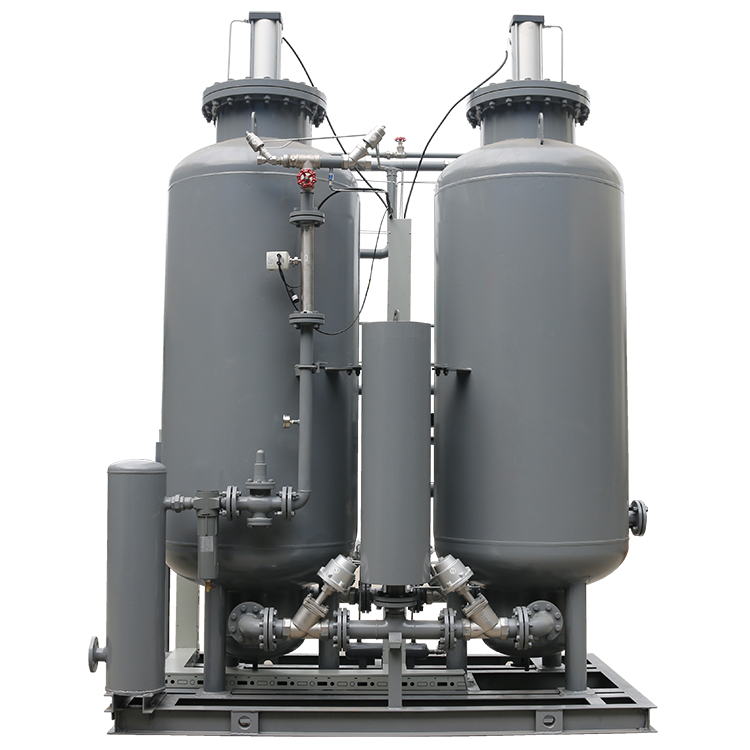

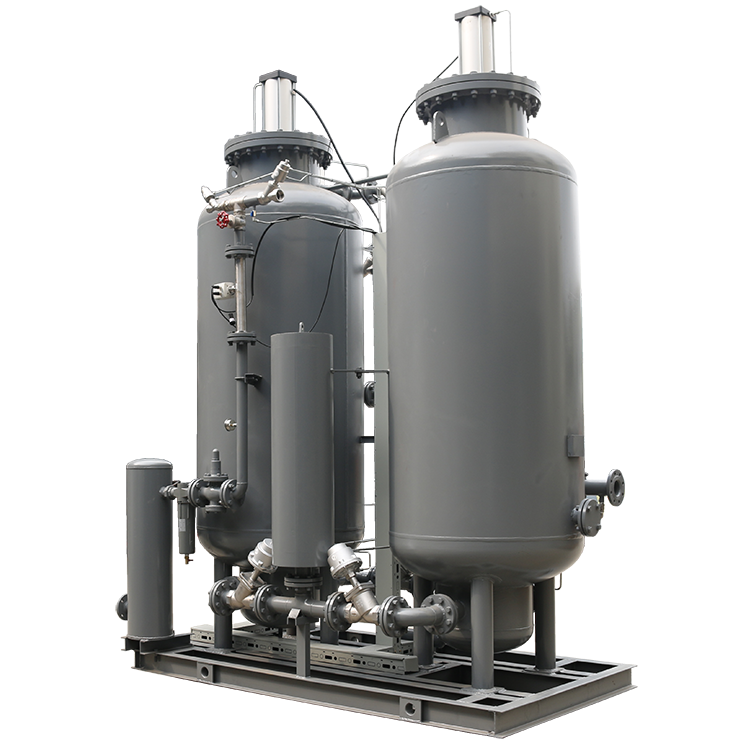

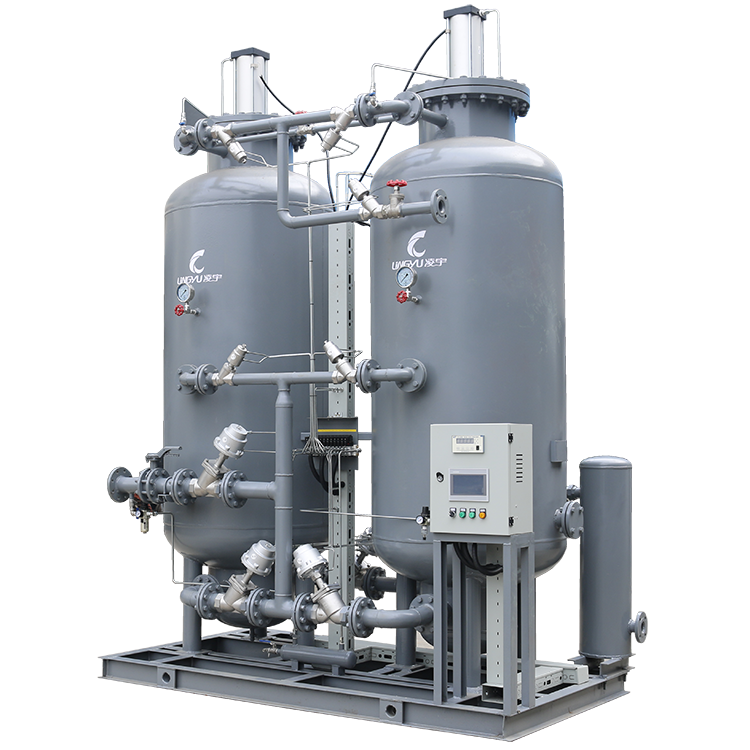

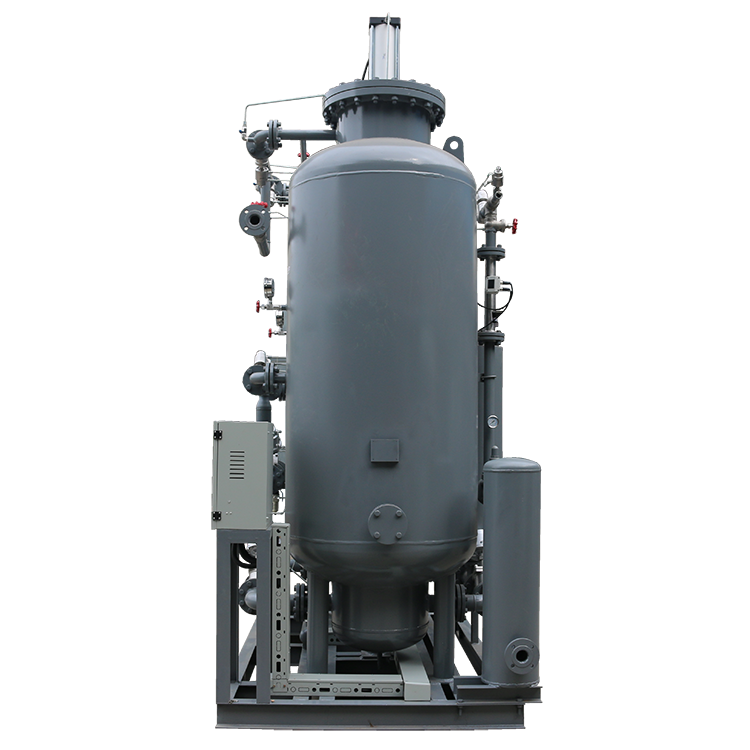

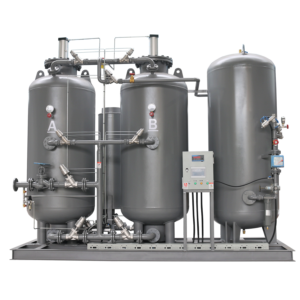

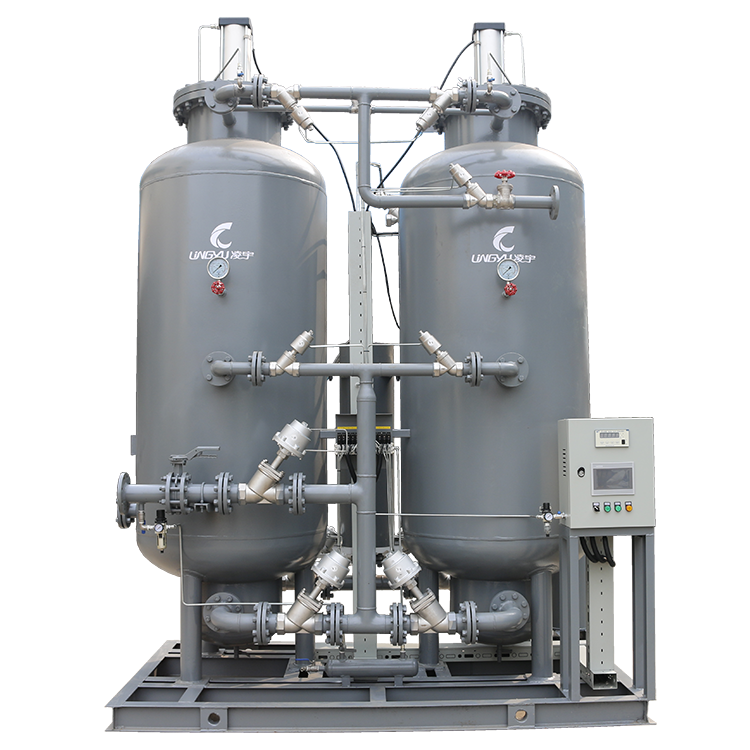

The PSA Nitrogen Generator uses Pressure Swing Adsorption (PSA) technology to separate nitrogen from compressed air and provide a stable on-site nitrogen supply. The system is equipped with two adsorption towers filled with high-performance carbon molecular sieve (CMS), which selectively adsorbs oxygen while allowing nitrogen to pass through as the product gas.
During operation, compressed air enters one tower, where oxygen molecules are captured by the CMS and nitrogen is collected at the outlet. At the same time, the second tower enters the regeneration stage, releasing the adsorbed oxygen into the atmosphere together with a small amount of nitrogen.
When the first tower reaches adsorption saturation, the system automatically switches. The regenerated tower begins nitrogen production, while the saturated tower starts regeneration. Controlled by a PLC automatic control system, the two towers work alternately in a continuous cycle, ensuring stable nitrogen purity, reliable performance, and uninterrupted nitrogen output.
To ensure stable nitrogen purity and efficient long-term operation, the PSA Nitrogen Generator should be used under the following recommended conditions:

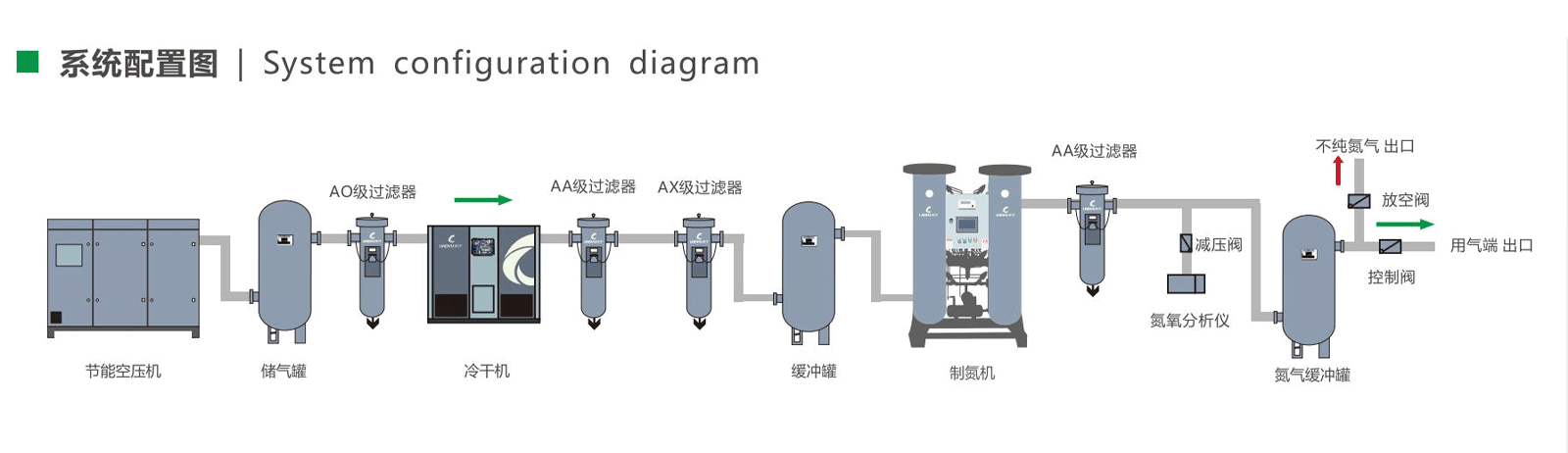

For the best operating result, the generator should be supplied with clean and stable compressed air. Proper pre-treatment, including air filtration and drying, is recommended to protect the carbon molecular sieve, maintain nitrogen purity, and extend equipment service life.
Nitrogen Purity: 98%
| Nitrogen Production (m³/h) | Inlet Pipe Size | Outlet Pipe Size | Dimensions (H × L × W mm) | Effective Air Consumption (m³/min) |
|---|---|---|---|---|
| 20 | DN20 | DN15 | 1500 × 850 × 500 | 0.66 |
| 30 | DN20 | DN15 | 1800 × 900 × 600 | 1.00 |
| 50 | DN20 | DN20 | 1900 × 1000 × 600 | 1.67 |
| 70 | DN32 | DN25 | 2400 × 1150 × 700 | 2.33 |
| 80 | DN32 | DN25 | 2400 × 1150 × 700 | 2.66 |
| 100 | DN32 | DN32 | 2600 × 1150 × 800 | 3.33 |
| 120 | DN40 | DN32 | 2600 × 1200 × 800 | 4.00 |
| 140 | DN40 | DN32 | 2600 × 1400 × 900 | 4.66 |
| 160 | DN50 | DN40 | 2600 × 1500 × 900 | 5.33 |
| 180 | DN50 | DN40 | 2750 × 1600 × 900 | 6.00 |
| 200 | DN50 | DN40 | 2750 × 1750 × 900 | 6.67 |
| 250 | DN50 | DN50 | 2750 × 1900 × 1000 | 8.33 |
| 300 | DN65* | DN50 | 2650 × 2160 × 1280 | 10.00 |
| 350 | DN65 | DN50 | 2890 × 2200 × 1200 | 11.67 |
| 400 | DN65 | DN65 | 2890 × 2200 × 1200 | 13.33 |
| 450 | DN65 | DN65 | 2900 × 2500 × 1350 | 15.00 |
| 500 | DN80 | DN80 | 2900 × 2500 × 1350 | 16.67 |
| 550 | DN80 | DN80 | 2900 × 2500 × 1350 | 18.33 |
| 600 | DN80 | DN80 | 2900 × 2500 × 1400 | 20.00 |
Note: The above data is based on an adsorption pressure of 0.8 MPa (gauge pressure), an ambient temperature of 20℃, and 80% relative humidity. It is for reference only and may change without prior notice.
In Malaysia’s hot, humid, and high-rainfall environment, many industrial processes face higher risks of oxidation, moisture-related instability, and inconsistent gas supply. The PSA Nitrogen Generator (98% purity) is well suited for applications that require a stable, continuous, and cost-effective on-site nitrogen source for oxidation control, product protection, and general industrial inerting.
The PSA Nitrogen Generator is suitable for applications in Malaysia such as:
